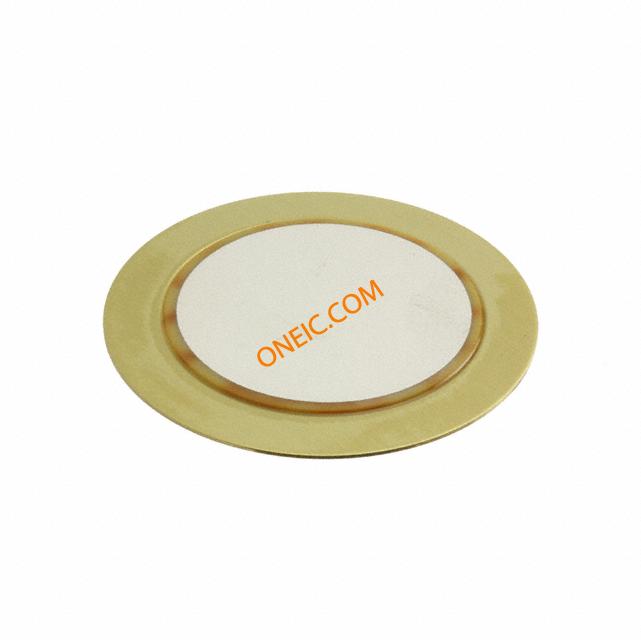

7BB-27-4
| Manufacturer | |
| Description | Audio Diaphragm Piezo Wire Lead 4100Hz to 5100Hz BUZZER ELEMENT STD 4.6KHZ Audio Indicators & Alerts 4.6KHZ PIEZO ELEMENT 7BB-27-4 Piezo element, 7BB-27-4, Murata Murata 隔膜音调 外部驱动 压电蜂鸣器, 最高4.6 kHz 7BB 4,6kHZ 27MM DISC |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Piezoelectric Diaphragms | Lead Time | 42 Days |
| Other Names | 490-7713 | Subcategory | Audio Indicator and Alerts |
| Product Category | Audio Indicators & Alerts | Standard Package | Bulk |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Frequency | 4.6kHz | Impedance | 200 Ohm |
| Drive Type | 外部 | Capacitance | 20nF |
| Frequency - Max | 5100 Hz | Frequency Range | 4100 to 5100 Hz |
| Output Function | External Drive | Capacitance @ Frequency | 20000pF @ 1kHz |
| Frequency - Self Resonant | 4.6 | ||
Mechanical
| Size | 1.06" Dia (27mm) | Height | 0.54 mm |
| Diameter | 27 mm | Packaging | Bulk |
| Termination | Wire Lead | Mounting Type | DISC |
| Length - Overall | 27 mm | Size / Dimension | 0.54 mm H |
| Number of Contacts | 2 | Dimensions - Overall | 27 x 0.42 mm |
| Exterior Housing Material | NO y/n | ||
Product Info
| Type | Diaphragm | Series | 7BB |
| Function | Y | Technology | Piezo |
| Description | For external oscillator | Other Specifications | NO |
| Modulation or Protocol | 隔膜 | ||
Environmental
| Temperature - Test | -20 °C | Operating Temperature | -20...+70 °C |
