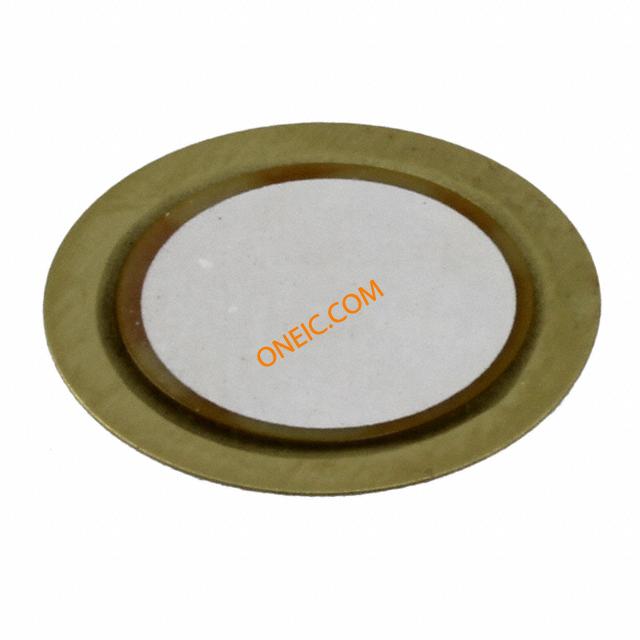

7BB-12-9
| Manufacturer | |
| Description | Audio Diaphragm Piezo Wire Lead 8000Hz to 10000Hz 7BB 9,0KHZ 12MM DISC BUZZER ELEMENT STD 9KHZ Piezoelectric Diaphragm 12mm diam Audio Indicators & Alerts ACOUSTIC ELEMENT 7BB-12-9 SOUNDER, 9KHZ, 12MM, EXT DRIVE Piezo element, 7BB-12-9, Murata Murata 表面贴装 隔膜音调 外部驱动 压电蜂鸣器, 8000 → 10000 Hz |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 5120 | Product | Piezoelectric Diaphragms |
| Lead Time | 42 Days | Unit Pack | 5120 |
| Other Names | 490-7709 | Subcategory | Audio Indicator and Alerts |
| Product Category | Audio Indicators & Alerts | Standard Package | Bulk |
| Factory Pack Quantity | 5120 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :Lead titanium zirconium oxide (20-Jun-2013) |
| Tariff No | 85318095 | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Frequency | 9kHz | Impedance | 1000Ohm |
| Drive Type | External | Capacitance | 8 ± 30%nF |
| Frequency - Max | 10000 Hz | Frequency - Min | 8000Hz |
| Frequency Range | 8000 to 10000 Hz | Output Function | External Drive |
| Diode Configuration | Diaphragm | Capacitance @ Frequency | 8000pF @ 1kHz |
| Frequency - Self Resonant | :9kHz | ||
Mechanical
| Size | 0.47" Dia (12mm) | Height | 0.22 mm |
| Weight | 0.000143 | Diameter | 12 mm |
| Packaging | Bulk | Termination | Wire Lead |
| Height (Max) | :0.1mm | Mounting Type | DISC |
| Length - Overall | 12mm | Size / Dimension | 12 x 0.22mm |
| Diameter - Outside | :12mm | Exterior Housing Material | NOy/n |
Product Info
| Type | Diaphragm | Series | 7BB |
| Function | :Diaphragm | Matchcode | SIGM9,0KO |
| Technology | Piezo | Standard Leadtime | 12 weeks |
| Other Specifications | NO | ||
Environmental
| Temperature - Test | -20°C | ||
