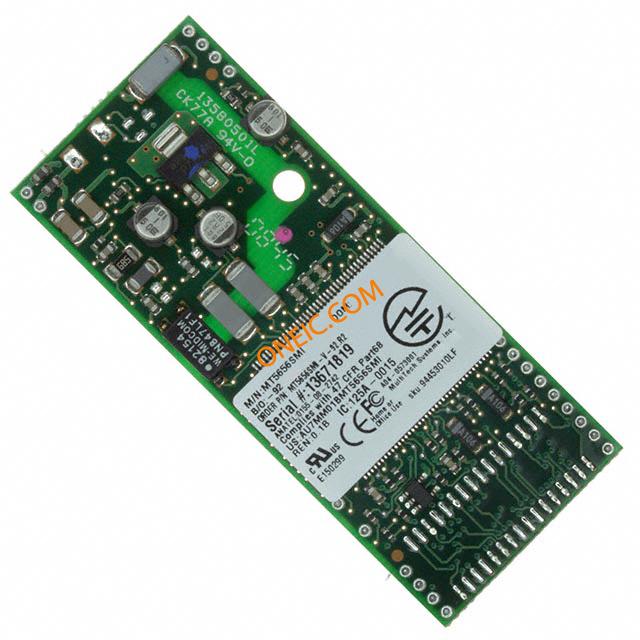

MT5656SMI-V-92.R2
| Manufacturer | |
| Description | Dial Up Modules V.92 Serial Data/Fax Speakerphone - 5V Modem Module 56Kbps Data/Fax 5VDC 64-Pin MODEM V.92 SERIAL DATA/FAX 5V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Data / Fax Modems | Other Names | 591-1019 |
| Product Category | Dial Up Modules | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | UART | Baud Rates | 56k |
| Memory Type | Flash, RAM | Voltage Rating | 5VDC |
| Data Rate (Max) | 56 Kbps | Current - Output | 117 |
| Current - Supply | 117 mA | Voltage - Supply | 5 V |
| Power - Average Forward | 580 mW | ||
Mechanical
| Packaging | Tray | Mounting Type | Surface Mount |
| Package / Case | Module | Size / Dimension | 64.5 mm x 26.5 mm |
| Number of Positions | 64 | ||
Product Info
| Data Format | V.92 | Main Purpose | Module |
| Sub-Category | Data/Fax | Media Delivery Type | RJ-11 |
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 70 C |
