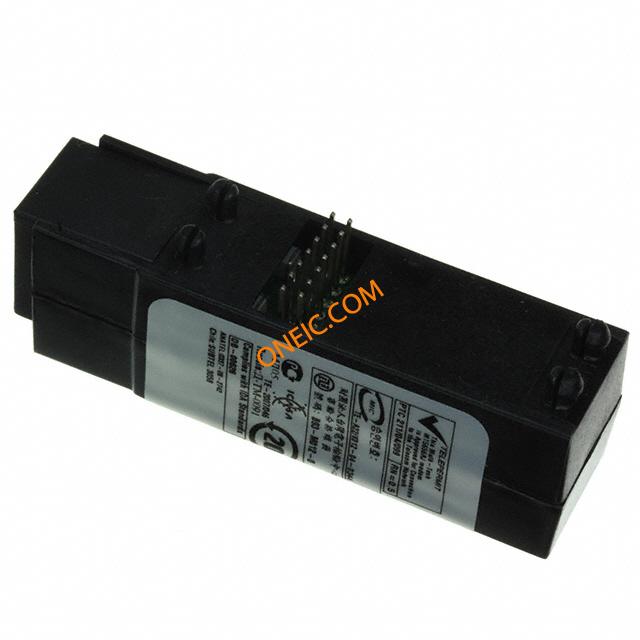

MT5656RJ-L-92.R3
| Manufacturer | |
| Description | Modem Module 14.4Kbps/33.6Kbps/56Kbps Data 3.3V/5V 14-Pin Dial Up Modules V.92 Serial Data Only - 3.3V MODEM RJ-11 V.92 SRL DATA 3.3V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RJ Modems | Product Category | Dial Up Modules |
| Standard Package | Trays | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Interface | DB-25|RS-232 | Baud Rates | 56k |
| Voltage Rating | 3.3|5 V | Data Rate (Max) | 14.4/33.6/56 Kbps |
| Current - Output | 95 mA | Current - Supply | 66 mA |
| Voltage - Supply | 3.3 V | Voltage - Supply (Min) | 3.6|5.25 V |
| Power - Average Forward | 0.31 W | ||
Mechanical
| Width | 18 | Weight | 1 oz |
| Packaging | Tray | Mounting Type | Surface Mount |
| Package / Case | Module | Length - Overall | 64 |
| Size / Dimension | 64 mm x 19.2 mm x 18 mm | Number of Positions | 14 |
| Shell Size - Insert | 19.2 | ||
Product Info
| Data Format | V.21, V.22, V.23, V.29, V.32, V.34, V.90, V.92, Bell 103, Bell 212A | Main Purpose | Module |
| Sub-Category | Data | Media Delivery Type | RJ-11 |
| Printed Circuit Board | 14 | ||
Environmental
| Operating Temperature | + 85 C | ||
