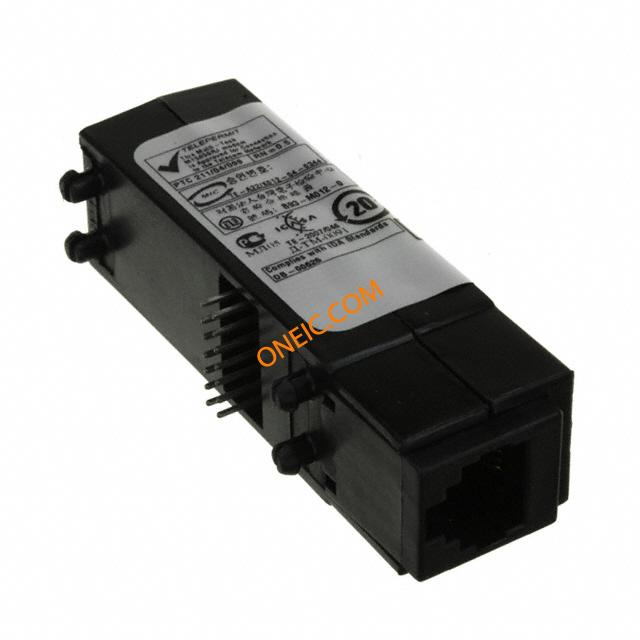

MT5656RJ-L-32.R3
| Manufacturer | |
| Description | Modem Module 14.4Kbps/33.6Kbps/56Kbps Data 3.3V/5V 14-Pin Dial Up Modules V.32bis Serial Data Only - 3.3V MODEM RJ-11 V.32BIS DATA 3.3V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RJ Modems | Other Names | 591-1103 |
| Product Category | Dial Up Modules | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Interface | DB-25|RS-232 | Baud Rates | 14.4k |
| Memory Type | Flash, RAM | Voltage Rating | 3.3|5 V |
| Data Rate (Max) | 14.4/33.6/56 Kbps | Current - Output | 95 mA |
| Current - Supply | 115 mA | Voltage - Supply | 3.3 V |
| Voltage - Supply (Min) | 3.6|5.25 V | Power - Average Forward | 380 mW |
Mechanical
| Weight | 1 oz | Packaging | Tray |
| Size / Dimension | 64.5 mm x 26.5 mm | ||
Product Info
| Data Format | V.21, V.22, V.23, V.29, V.32, V.34, V.90, V.92, Bell 103, Bell 212A | Main Purpose | Module |
| Sub-Category | Data | Media Delivery Type | RJ-11 |
Environmental
| Operating Temperature | + 70 C | ||
Documents & Media
PDF Document
PDF Document
