90814-0804
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 4w Headers & Wire Housings PF50 SMT HDR 4P HEADER, PICOFLEX, SMT, 4WAY Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 表面安装 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0908140804 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 8640 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :MOLEX - Picoflex 90814 Series | Voltage Rating | 250 V ac/dc |
| Current Rating (Max) | 1.2A | ||
Mechanical
| Color | Natural | Pitch | 0.050" (1.27mm) |
| Weight | 0.00027 | Packaging | Tube |
| Termination | Solder | Contact Type | Blade Pin |
| Lead Spacing | :1.27mm | Mounting Type | Surface Mount |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon | Termination Style | SMD |
| Number of Contacts | 4 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 4 | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness | 118.1µin (3.00µm) | ||
Product Info
| Type | Pin Strip | Gender | Male |
| Series | 90814 | Features | Board Guide |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

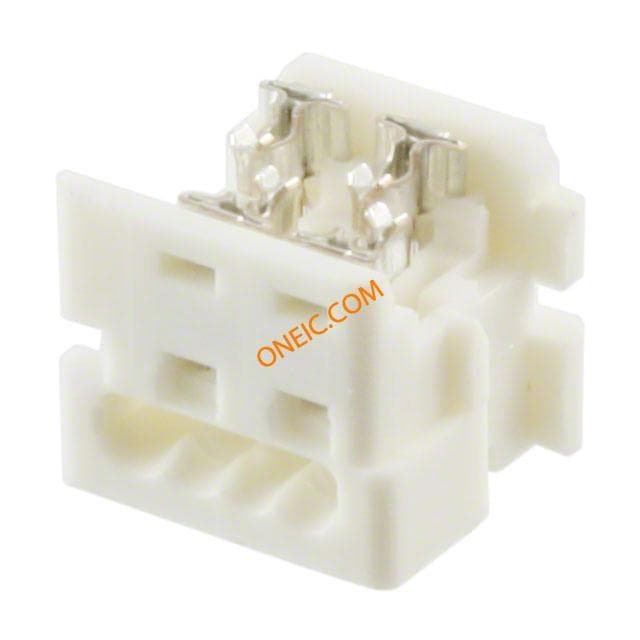

0903270304
molex
Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 4POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 4; tinned; 1.2A; 250V
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT

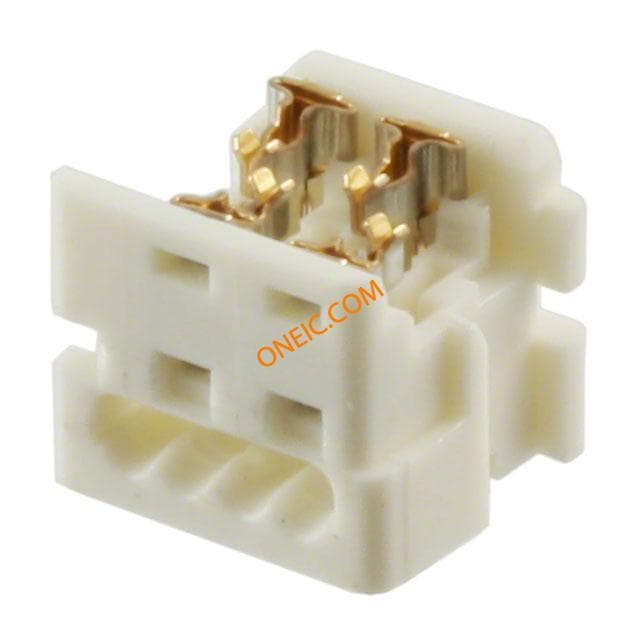

90327-3304
