90584-1326
| Manufacturer | |
| Description | Conn IDC Connector RCP 26 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 26POS 1.27MM TIN Headers & Wire Housings PICOFLEX 26P HSG LOPRO IDT BOARD-IN |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Picoflex | Part # Aliases | 0905841326 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1260 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 1.2 A |
Mechanical
| Color | White | Pitch | 2.54 mm |
| Packaging | Tube | Wire Gauge | 26-28 AWG, Stranded |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Mounting Type | Through Hole, Press-Fit | Connector Type | Ribbon Cable |
| Contact Finish | Tin | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Cable Termination | IDC | Termination Style | Through Hole |
| Number of Contacts | 26 | Number of Positions | 26 |
| Contact Finish Thickness | 80µin (2.03µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | 90584 | Features | Closed End |
| Product Type | Receptacles / Sockets - Housings | Number of Positions Loaded | All |
Documents & Media
PDF Document
Similar Parts

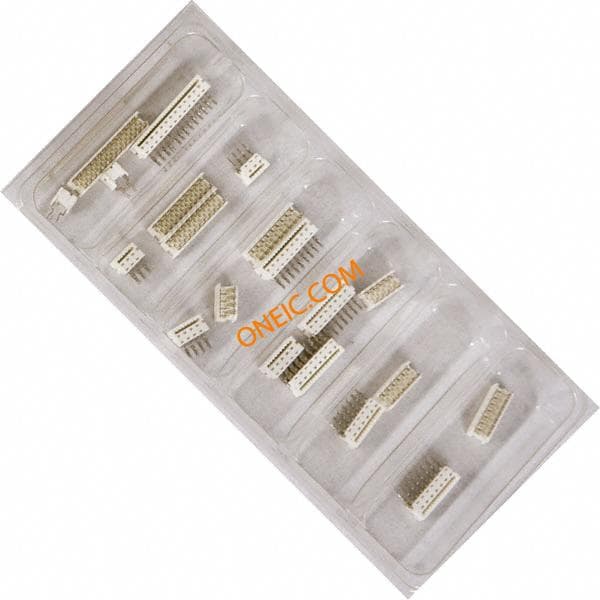

76650-0121
