90584-1310
| Manufacturer | |
| Description | Conn IDC Connector RCP 10 POS 2.54mm Solder ST Thru-Hole Tube CONN RECEPT IDT 10POS 1.27MM TIN Headers & Wire Housings PICOFLEX IDT REC 10P PF-50 Picoflex board in connector 10P, 90584-1310, Molex |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0905841310 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1088 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V | Number of Poles | 10 |
| Current Rating (Max) | 1.2 A | ||
Mechanical
| Color | White | Pitch | 2.54 mm |
| Packaging | Tube | Wire Gauge | 26-28 AWG, Stranded |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Lead Spacing | 0.100" (2.54mm) | Mounting Type | Through Hole, Press-Fit |
| Connector Type | Ribbon Cable | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Cable Termination | IDC |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 10 | Number of Positions | 10 |
| Contact Finish Thickness | 80µin (2.03µm) | ||
Product Info
| Type | IDC Connector | Design | IDT board-in connector |
| Gender | RCP | Series | 90584 |
| Features | Closed End | Product Type | Receptacles / Sockets - Housings |
| Output Configuration | Through Hole, Press-Fit | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40...+105 °C | ||
Similar Parts
76650-0121
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,18,20,26,4,6,8POS 1.2A THROUGH HOLE MOUNTING BOARD-IN RIGHT ANGLE RECEPTACLE HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX 1.27MM ASSORTED COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,18,20,26,4,6,8POS 1.2A THROUGH HOLE MOUNTING BOARD-IN RIGHT ANGLE RECEPTACLE HEADER 1.27MM PITCH 250V 28-26 ... Kit Description:IDT Board-In Right Angle Receptacle Header Kit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:20 PICOFLEX CONNECTOR KIT IDT BOARD-IN RT ANGLE RECEPT HEADER
76650-0124
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,6,8POS SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX ALL INCLUSIVE Headers & Wire Housings PICOFLEX DELUXE KIT COMPONENT KITS, WIRE TO BOARD KIT 10,12,6,8POS SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE ... Kit Description:SMT Vertical and Right Angle Header, Receptacle and IDT Board-In Receptacle HeaderKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:40 PICOFLEX DELUXE CONNECTOR KIT

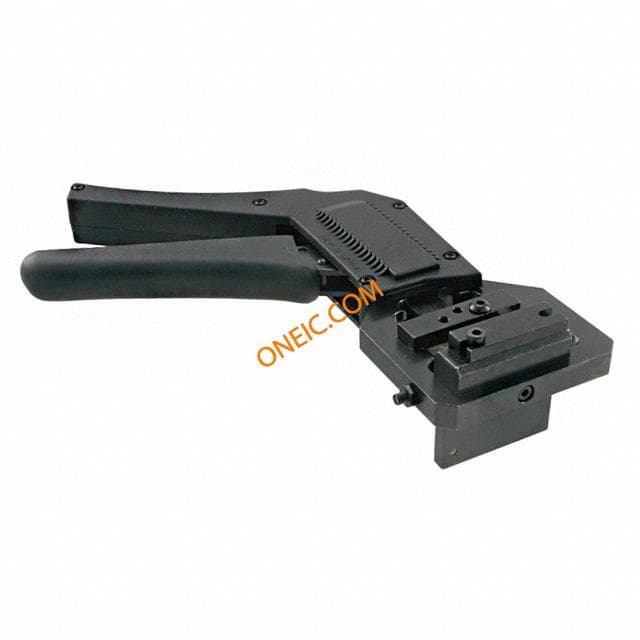

0690081090
