90325-7018
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 18 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 18PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 18P HDR AU R/A LP W/PCB PEGS |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903257018 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 2394 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 1.2 A |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Blade Pin | Mounting Type | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Palladium-Nickel |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 18 | Number of Positions | 18 |
| Contact Finish Thickness | 24µin (0.60µm) | ||
Product Info
| Type | Ribbon Cable Connector | Series | 90325 |
| Features | Board Lock | Product Type | Headers |
| Number of Positions Loaded | All | ||
Similar Parts
0903270380
molex
Conn IDC Connector RCP 18 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT

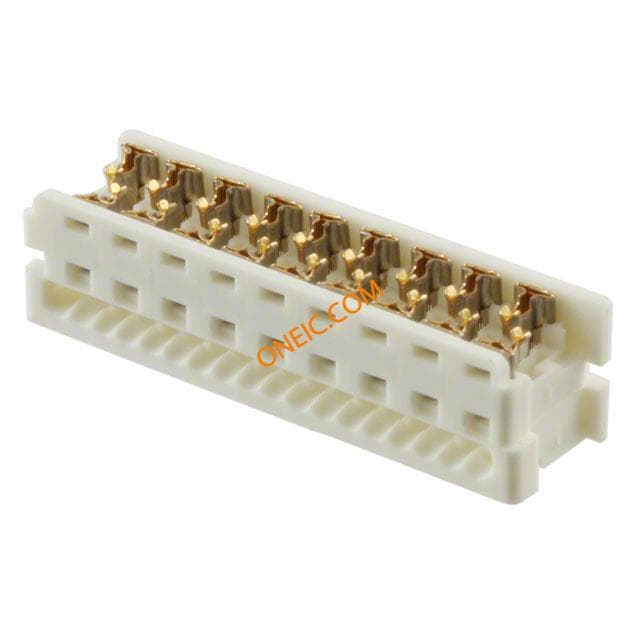

90327-3318
molex
Conn IDC Connector RCP 18 POS 2.54mm IDT RA Cable Mount Bag CONN RECPT IDT 18POS 1.27MM GOLD 18 way IDT housing,2.54mm pitch low prof Headers & Wire Housings PICOFLEX 18P HSG LOPRO IDT AU 1.27mm Pitch Picoflex® PF-50, Low Profile, IDT Receptacle, 18 Circuits, White, Gold (Au) Plated, Reeling Option A RECEPTACLE, 1.27MM, 18WAY Molex PICOFLEX 系列 2行 18路 1.27mm节距 直角 电缆安装 母 IDC 连接器

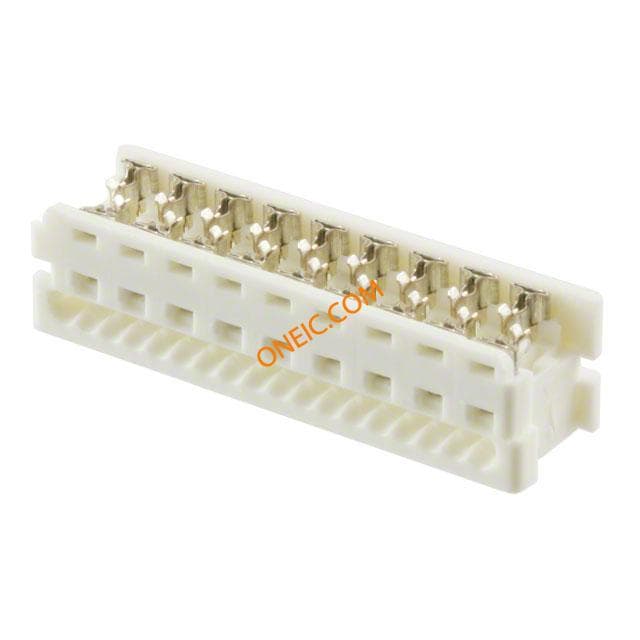

90327-0318
