90325-7010
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 10PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 10P HDR AU R/A LP W/PCB PEGS |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903257010 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 1536 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 1.2 A |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Blade Pin | Mounting Type | Straight |
| Connector Type | Header, Unshrouded | Contact Finish | Palladium-Nickel |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 10 | Number of Positions | 10 |
| Contact Finish Thickness | 24µin (0.60µm) | ||
Product Info
| Type | Ribbon Cable Connector | Series | 90325 |
| Features | Board Lock | Product Type | Headers |
| Number of Positions Loaded | All | ||
Similar Parts
0903270366
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
0903273364
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT

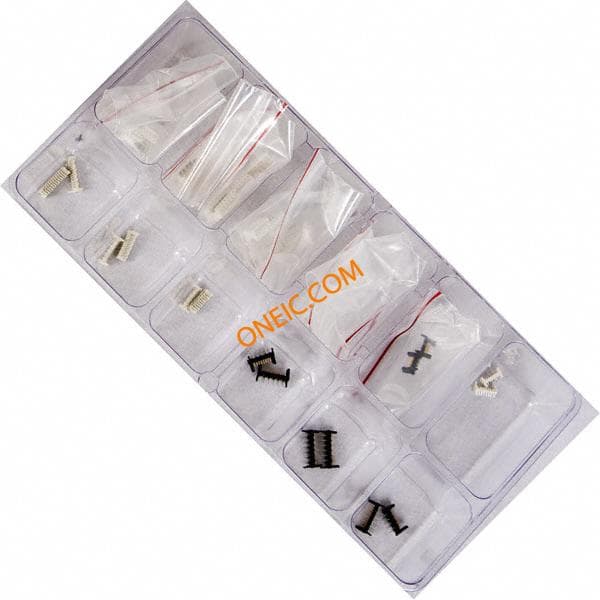

76650-0124
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,6,8POS SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX ALL INCLUSIVE Headers & Wire Housings PICOFLEX DELUXE KIT COMPONENT KITS, WIRE TO BOARD KIT 10,12,6,8POS SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE ... Kit Description:SMT Vertical and Right Angle Header, Receptacle and IDT Board-In Receptacle HeaderKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:40 PICOFLEX DELUXE CONNECTOR KIT

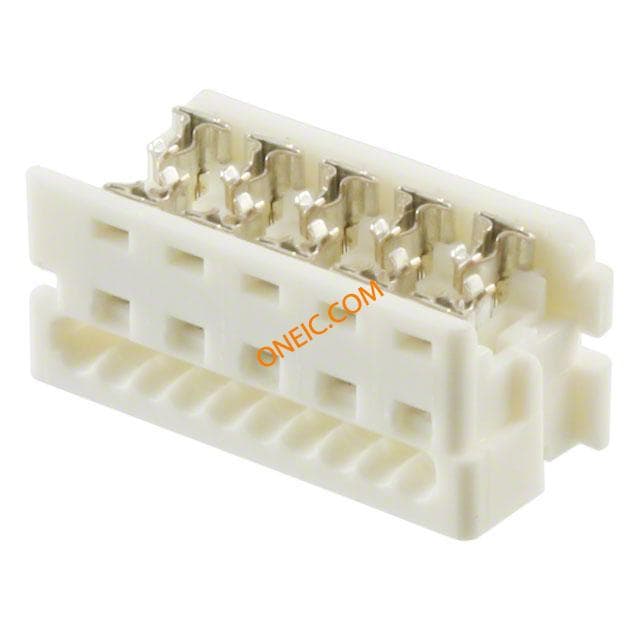

0903270310
