90325-0010
| Manufacturer | |
| Description | 10 way through board header,1.27mm pitch Headers & Wire Housings PICOFLEX 10P HDR LOPRO SN Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag HEADER, PICOFLEX, 10WAY Straight header 10P, 90325-0010, Molex Molex PICOFLEX 系列 10路 1.27mm节距 通孔 公 IDC 连接器 |
| Category |
Business
| Tradename | Picoflex | Part # Aliases | 0903250010 |
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - Picoflex 90325 Series | Voltage Rating | 250 V |
| Voltage - Working | :250V | Contact Resistance | :10mohm |
| Voltage - Breakdown | :750V | Current Rating (Max) | 1.2A |
Mechanical
| Pitch | 1.27mm | Width | :11.43mm |
| Weight | 0.042 | Material | :Polyester |
| Wire Gauge | :26AWG | Termination | Through Hole |
| Lead Spacing | :1.27mm | Mounting Type | Straight |
| Contact Finish | Tin over Nickel | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | PBT |
| Termination Style | Through Hole | Color - Connectors | :Black |
| Number of Contacts | 10 | Contact Termination | :Through Hole Vertical |
| Mounting Panel Thickness | :15.03mm | Wire Gauge or Range - AWG | :28AWG |
Product Info
| Type | Unshrouded | Gender | Male |
| Series | 90325 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
90327-0310
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag 10 way IDT housing,1.27mm pitch Headers & Wire Housings PF-50 IDT RECPT 10P CONNECTOR, PICOFLEX, 10WAY Female connector 10P, 90327-0310, Molex Molex PICOFLEX 系列 2行 10路 1.27mm节距 直角 电缆安装 母 IDC 连接器
92315-1015
Molex
Cable Assemblies 10-10C PICOFLEX ASY 150MM LONG Ribbon Cables / IDC Cables 10-10C PICOFLEX ASY 150MM LONG PicoFlex; 10; tinned; 1.2A; Contacts ph:1.27mm; 250V
69008-1090
molex
Connector Accessories Picoflex Connector IDT Hand Tool Crimpers HAND CRIMP 04-26P PICOFLEX Hand tool-Picoflex PF-50 IDT receptacles HAND TOOL, IDT Handtool, 69008-1090, Molex Molex HANDTOOL 系列 IDT 压接工具 , 适用于28 → 26 AWG 线规格

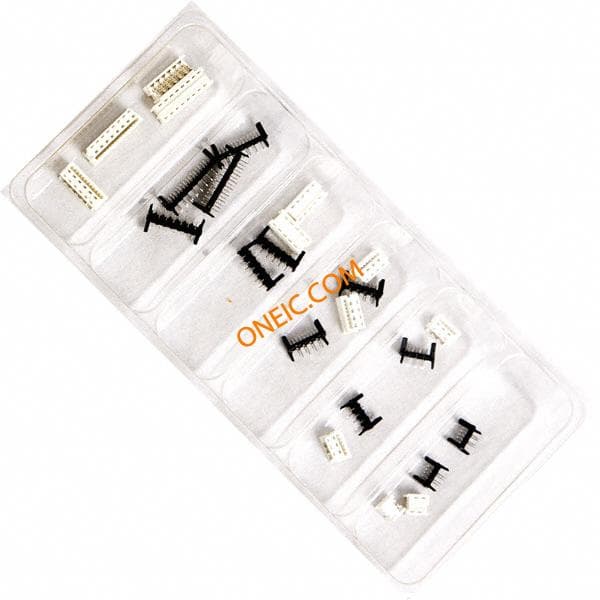

76650-0122
