90142-0034
| Manufacturer | |
| Description | Conn Housing F 34 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 34POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,34w Headers & Wire Housings 2.54MM CGRIDIII HSG 34P DR CRIMP 2.54mm Pitch C-Grid III™ Crimp Housing Dual Row, 34 Circuits Crimp housing 2 x 17P, 90142-0034, Molex Molex C-GRID III 系列 2 行 2.54mm 节距 34 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | C-GRID | Part # Aliases | 0901420034 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 400 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 350 V | Number of Poles | 2 x 17 |
| Current Rating (Max) | 3 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 0.100" (2.54mm) | Width | 7.72mm |
| Length | 43.18mm | Packaging | Bulk |
| Orientation | 直 | Row Spacing | 0.100" (2.54mm) |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Lead Spacing | 0.100" (2.54mm) | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | Double row | Housing Material | PPO |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 34 | Contact Termination | Crimp |
| Number of Positions | 34 | 1st Connector Gender | Female |
Product Info
| Note | Contacts Not Provided | Design | Crimp connector housing, dual row |
| Gender | Female | Series | 90142 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| Base Product Number | 90142 | Output Configuration | Free Hanging (In-Line) |
| For Use With/Related Products | C-Grid III Connector | ||
Documents & Media
Similar Parts
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90130-1134
Molex Connector Corporation

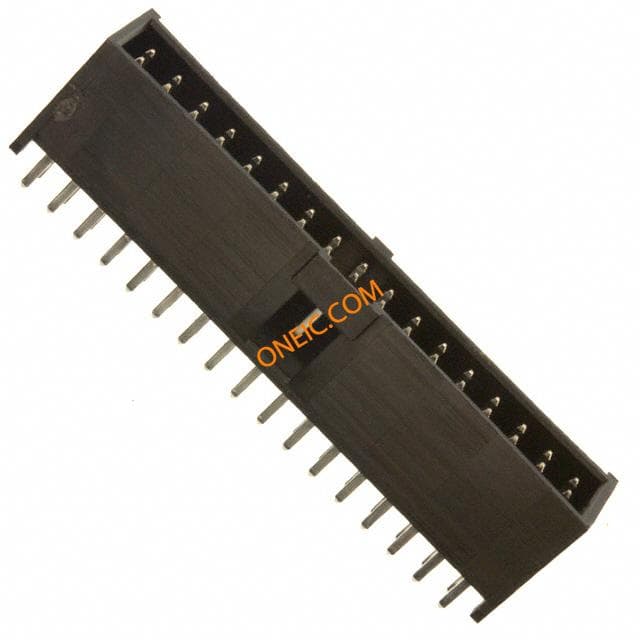

CONN HEADER 34POS .100" STR TIN Molex 90130 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Tray HEADER, 34POS, 2ROW, 2.54MM Molex C-GRID III 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔
90130-3134
Molex Connector Corporation

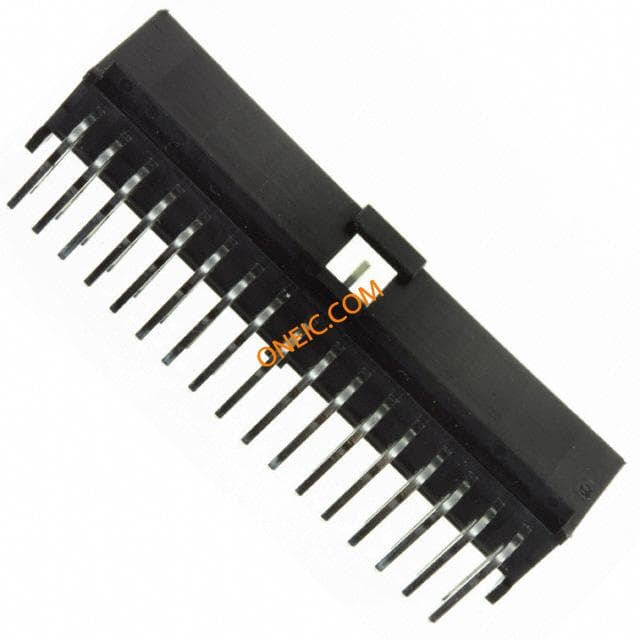

CONN HEADER 34POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 34P R/A DR SHRD TIN Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Tray
90122-0137
Molex Connector Corporation

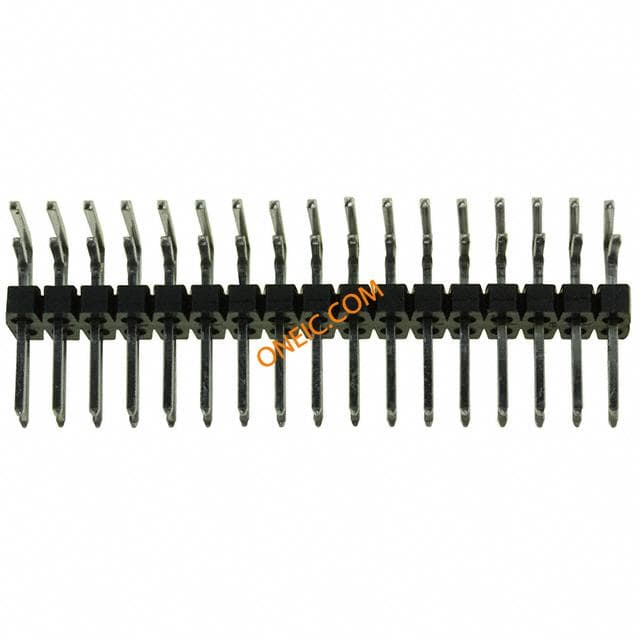

CONN HEADER 34POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 34P R/A DR TIN Conn Unshrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Bag
90130-1234
Molex Connector Corporation

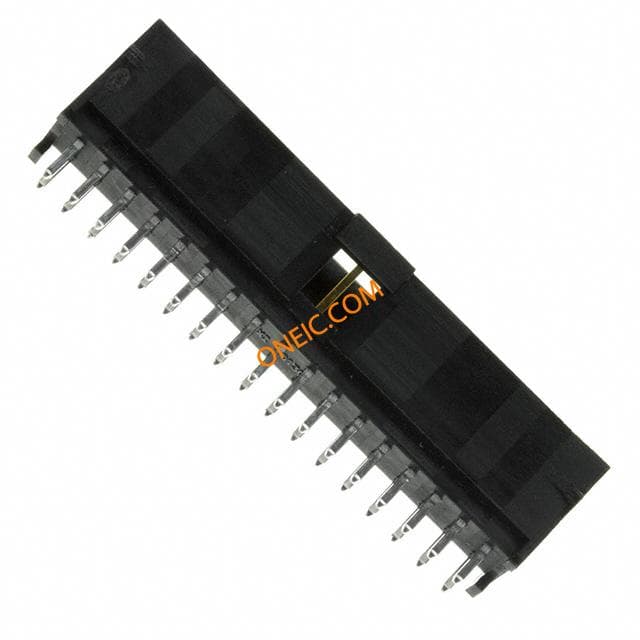

CONN HEADER 34POS .100" STR GOLD Molex 90130 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 34P V DR SHRD AU-E Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 3A , 通孔
