90123-0112
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 2.54mm Crimp ST Bag CONN HOUSING 12POS .100" SINGLE 12 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 12P SR W/2POL BTTN 2.54mm Pitch C-Grid III™ Modular Crimp Housing Single Row, 2 Polarizing Buttons, 12 Circuits Crimp housing 1 x 12P, 90123-0112, Molex Molex C-GRID III 系列 2.54mm 节距 12 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | C-GRID | Part # Aliases | 0901230112 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Number of Poles | 1 x 12 | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 3.43mm |
| Length | 30.48mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 1 |
| Connector Style | Free hanging/cable mount | Housing Material | PPO |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | 1st Connector Gender | Female |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Design | Female housing | Gender | RCP |
| Series | 90123 | Features | Polarizing Key |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| Base Product Number | 90123 | ||
Documents & Media
Similar Parts
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
90121-0132
molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR TIN Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray Pin header 1 x 12P, 90121-0132, Molex
90136-2112
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 12POS .100" R/A TIN Molex 90136 Series 2.54mm Pitch 12 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR SHRD TIN Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
90136-1212
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100" STR GOLD Molex 90136 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P V SR SHRD AU-E HEADER, VERTICAL, 1ROW, 12WAY Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
90136-2212
molex
Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 12POS .100" R/A GOLD Headers & Wire Housings 2.54MM CGRIDIII HDR 12P R/A SR SHRD AU
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
0901200132
Molex
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100" STR TIN
90120-0772
Molex Connector Corporation
CONN HEADER 12POS .100" STR GOLD Molex 90120 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 12P VERT SR SEL AU Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 12路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔

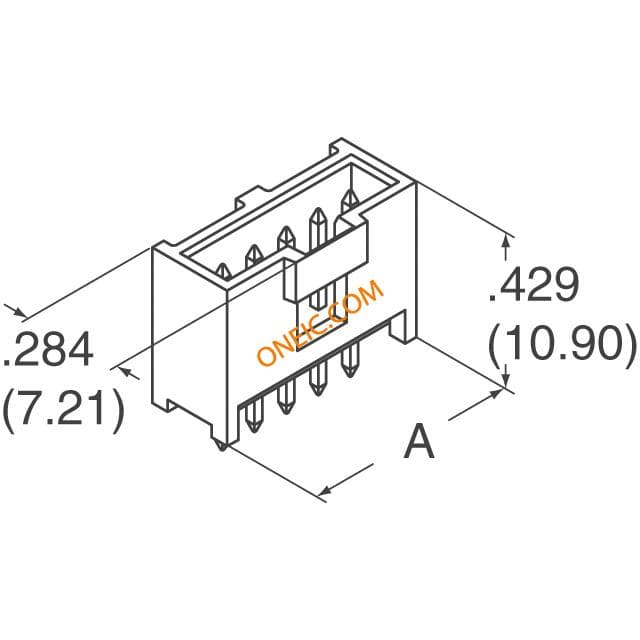

90136-1112
