90123-0103
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 2.54mm Crimp ST Bag CONN HOUSING 3POS .100" SINGLE 3 way single row housing Headers & Wire Housings 2.54MM CGRIDIII HSG 3P SR W/2POL BTTN HOUSING POLARISED, 3WAY Crimp housing 1 x 3P, 90123-0103, Molex Molex C-GRID III 系列 2.54mm 节距 3 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | C-GRID | Part # Aliases | 0901230103 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | ||
Electrical
| Range deg/s | :MOLEX - C-Grid III 90123 Series | Voltage Rating | :350V |
| Contact Resistance | :20mohm | Current Rating (Max) | :3A |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 3.43mm |
| Length | 7.62mm | Weight | 0.016 |
| Packaging | Bulk | Termination | :Crimp |
| Contact Type | Female Socket | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | :- |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | :Polyphenylene Oxide UL94V-1 | Contact Material | :- |
| Housing Material | PPO | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| 1st Connector Mounting Type | :PC Board | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | 90123 |
| Features | Polarizing Key | CAD Drawing | 3D CAD Model |
| Product Type | Receptacles / Sockets - Housings | For Use With/Related Products | C-Grid III Modular Connector |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
0901361203
molex

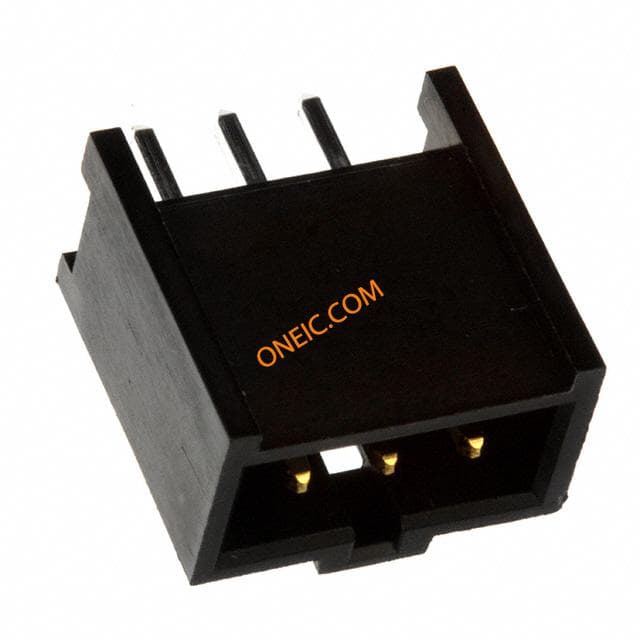

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR GOLD
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901200123
molex

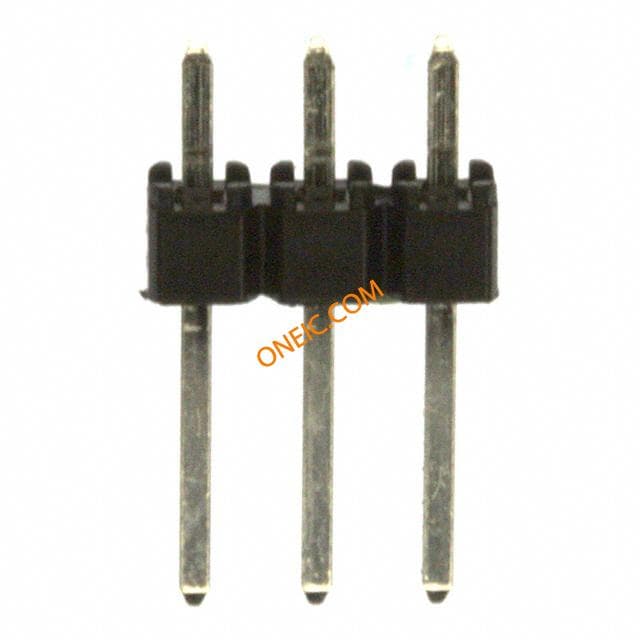

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR TIN Pin header; pin strips; C-Grid III; male; PIN:3; straight; 2.54mm
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901361103
molex

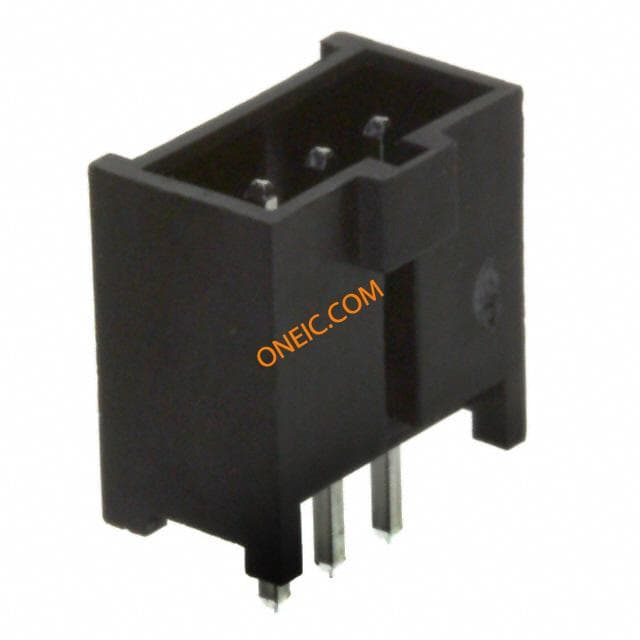

Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR TIN
925366-3
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 3POS .100 GREEN Headers & Wire Housings HSG RECPT 1X03P Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 3WAY TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 3 路 直 母 PCB 壳体 MOD 4 REC.HSG 1X03P
0901200763
molex
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 3POS .100" STR GOLD
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN
0901362103
molex

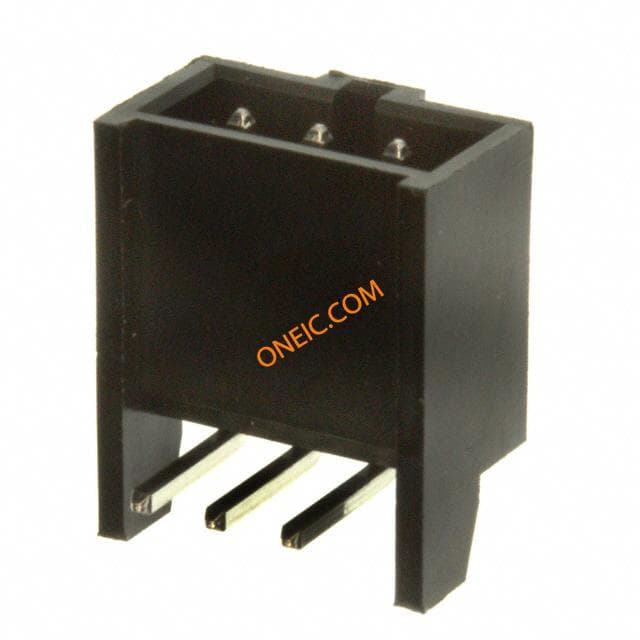

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 3POS .100" R/A TIN
69008-0003
molex
Connector Accessories Extraction Aid Tool Hand Tools EXTRACTION TOOL Extraction tool for crimp terminal Application Tooling Type Extraction Aid Tool EXTRACTION TOOL Extraction tool, 69008-0003, Molex Molex HANDTOOL 系列 压接拔取工具
90136-2203
molex

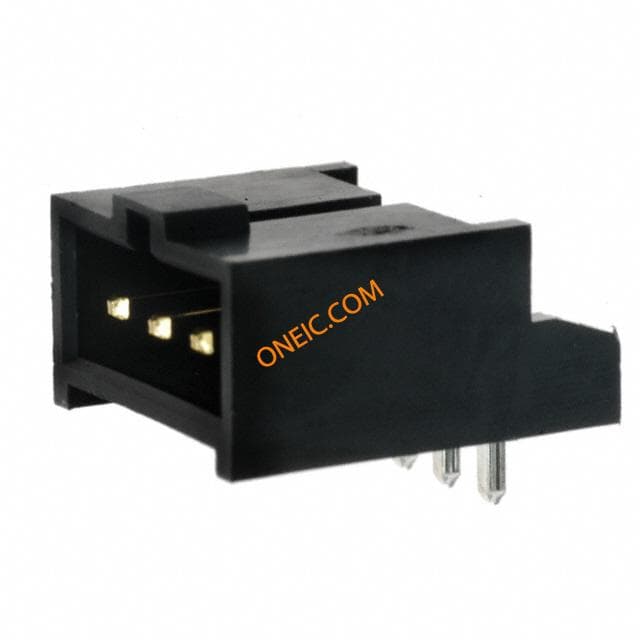

Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 3POS .100" R/A GOLD Molex 90136 Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 3P R/A SR SHRD AU Molex C-GRID III 系列 2.54mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
90119-2110
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 22-24 FEM CRIMP TERM Crimp contact terminal,22-24 awg CONTACT, SOCKET, 22-24AWG, CRIMP CONTACT, FEMALE, 24-22AWG, CRIMP c-grid Terminals 22-24 FEM CRIMP TERM Crimp socket 3 A Female 24...22 AWG, 90119-2110, Molex Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点
69008-0140
molex
Connector Accessories C-Grid Insertion Tool Hand Tools C' GRID INSERTION TOOL Insertion tool for crimp terminal Hardware Tools, C-Grid Insertion Tool INSERTION TOOL Insertion Tool; C-Grid Insertion tool, 69008-0140, Molex Molex HANDTOOL 系列 插入工具
90121-0763
molex

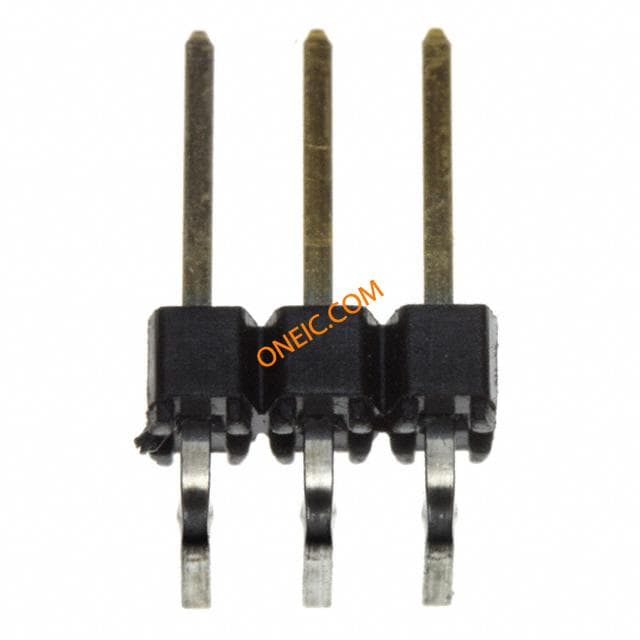

Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 3POS .100" R/A GOLD Molex 90121 Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.54MM CGRIDIII HDR 3P R/A SR SEL AU Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray HEADER, RIGHT ANGLE, 1ROW, 3WAY Molex C-GRID III 系列 2.54mm节距 3路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A
90121-0123
Molex Connector Corporation

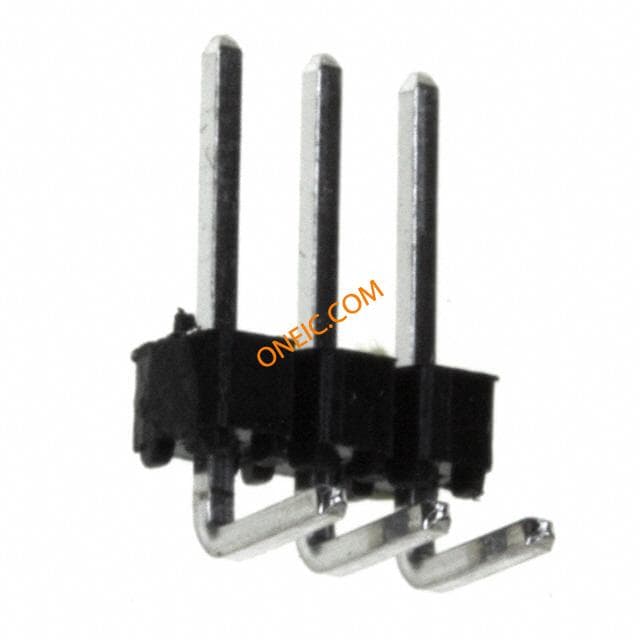

CONN HEADER 3POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 3P R/A SR TIN Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray Pin header 1 x 3P, 90121-0123, Molex
