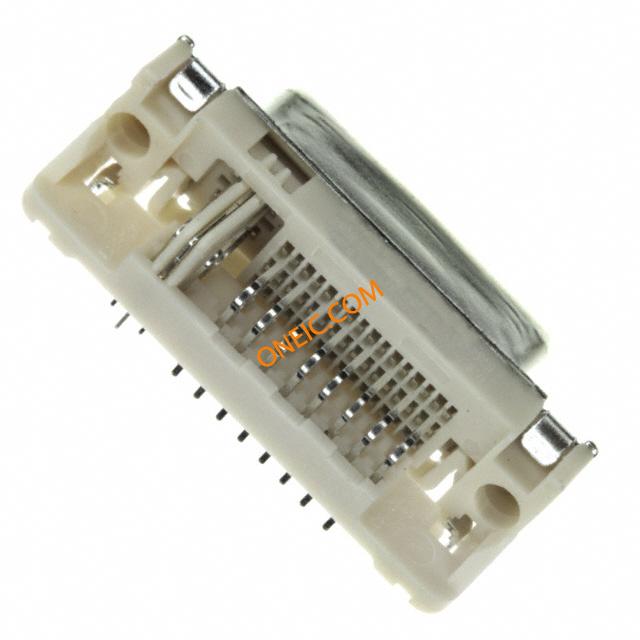

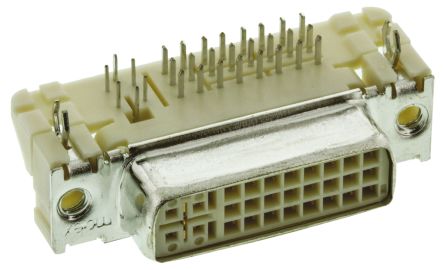

74320-9014
| Manufacturer | |
| Description | HDMI, Displayport & DVI Connectors 29CKT RA PCB RECEPT PNL MNT THRUHOLE CONN RCPT R/A ANALOG DGTL DVI Recepticle,PCB, DVI,pan mnt,T/H,R/A,29 w Conn MicroCross RCP 24 POS 1.91mm Solder RA Thru-Hole 24 Terminal 1 Port Tray RECEPTACLE, DVI-I, R/A, FORK LOCK Molex MicroCross 74320 系列 1.91mm 节距 24 路 直角 通孔安装 DVI 印刷电路板 D-Sub 连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | MicroCross | Part # Aliases | 0743209014 |
| Product Category | HDMI, Displayport & DVI Connectors | Standard Package | 1 |
| Factory Pack Quantity | 672 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :DDWG | ||
Electrical
| Voltage Rating | 40 V ac | Number of Poles | :29 |
| Voltage - Working | :40V | Current Rating (Max) | 3A |
| Contact Rating @ Voltage | 3 A | ||
Mechanical
| Color | Natural | Depth | 18.03mm |
| Pitch | 1.91mm | Width | 9.91mm |
| Length | 36.83mm | Weight | 0.004 |
| Packaging | Bulk | Orientation | Right Angle |
| Termination | :Solder | Mounting Type | Panel Mount; Through Hole, Right Angle |
| Connector Type | DVI-I, Dual Link | Contact Finish | Gold |
| Contact Material | Copper Alloy | Housing Material | Polymer |
| Size / Dimension | 36.83 x 9.91 x 18.03mm | Termination Style | Through Hole |
| Number of Contacts | 24 | Contact Termination | :Through Hole Right Angle |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | Receptacle | Series | 74320 |
| Features | Board Lock, Flange, Shielded | Product Type | DVI |
Environmental
| Operating Temperature | +85°C | ||
