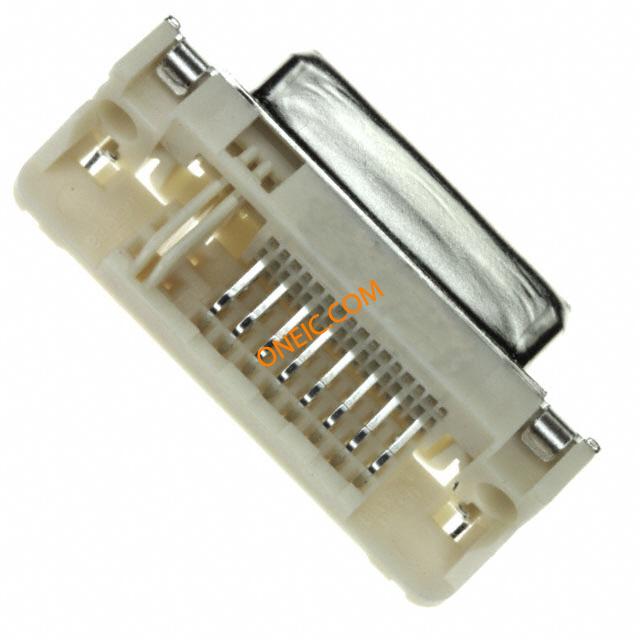

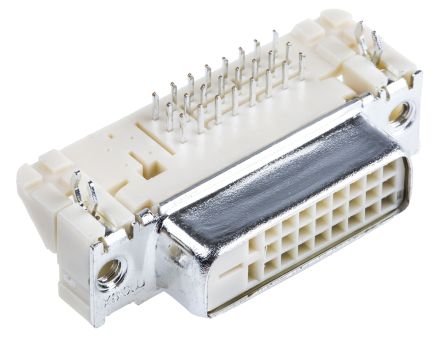

74320-9004
| Manufacturer | |
| Description | HDMI, Displayport & DVI Connectors R/A DVI RECEPTACLE CONN RCPT R/A ANALOG DGTL DVI Recepticle,PCB, DVI,pan mnt,T/H,R/A,24 w Conn MicroCross RCP 24 POS 1.91mm Solder RA Thru-Hole 24 Terminal 1 Port Tray CONNECTOR, DVI-D, RCPT, 24POS, PCB Molex MicroCross 74320 系列 1.91mm 节距 24 路 直角 通孔安装 DVI 印刷电路板 D-Sub 连接器 插座 |
| Category |
Business
| Tradename | MicroCross | Part # Aliases | 0743209004 |
| Product Category | HDMI, Displayport & DVI Connectors | Standard Package | 1 |
| Factory Pack Quantity | 672 | ||
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 40 V ac | Current Rating (Max) | 3A |
| Contact Rating @ Voltage | 3 A | ||
Mechanical
| Color | Natural | Depth | 18.03mm |
| Pitch | 1.91mm | Width | 9.91mm |
| Length | 36.83mm | Weight | 0.02 |
| Packaging | Bulk | Orientation | Right Angle |
| Mounting Type | Panel Mount; Through Hole, Right Angle | Connector Type | DVI-D, Dual Link |
| Contact Finish | Gold over Nickel | Contact Material | Copper Alloy |

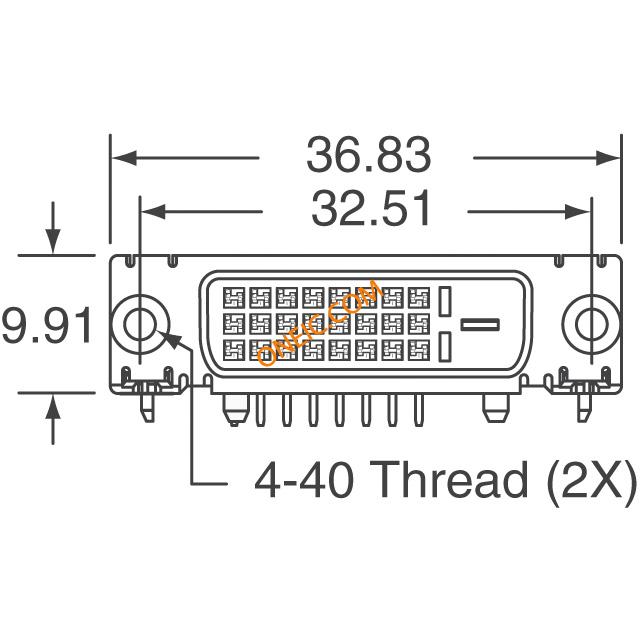

| Housing Material | Thermoplastic | Size / Dimension | 36.83 x 9.91 x 18.03mm |
| Termination Style | Through Hole | Number of Contacts | 24 |
| Contact Termination | :Through Hole Right Angle | 1st Connector Mounting Type | :PCB |
Product Info
| Gender | Receptacle | Series | 74320 |
| Features | Board Lock, Flange, Shielded | Product Type | DVI |
| Configuration | :Digital Only (DVI-D) | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
