70246-1202
| Manufacturer | |
| Description | Conn Shrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 12POS .100 VERT GOLD Headers & Wire Housings 2.54mm CGrid Hdr Shr d /Slt .76AuLF 12Ckt |
| Category |
Business
| Tradename | C-Grid | Other Names | 0702461202 |
| Part # Aliases | 0702461202 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 112 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2.5 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 12 | Number of Positions | 12 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 70246 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0903273368
molex
Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag 1.27MM PF LOPRO IDT RL-B WHT
0903270370
molex
Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
15-44-3206
Molex
Headers & Wire Housings 12C DUAL ROW PCB VRT CONN RECEPT 12POS .100 VERT PCB
15-45-1306
Molex
Headers & Wire Housings 12P DUAL ROW PCB VRT CONN RECEPT 12POS .100 VERT PCB
15-44-4506
Molex
Headers & Wire Housings 12P DUAL ROW PCB VRT CONN RECEPT 12POS .100 VERT PCB
90327-0312
Molex Connector Corporation
CONN RECEPT IDT 12POS 1.27MM TIN 12 way IDT housing,1.27mm pitch Headers & Wire Housings PICOFLEX 12P HSG LOPRO IDT SN Conn IDC Connector RCP 12 POS 2.54mm IDT RA Cable Mount Bag CONNECTOR, PICOFLEX, 12WAY Female connector 12P, 90327-0312, Molex Molex PICOFLEX 系列 2行 12路 1.27mm节距 直角 电缆安装 母 IDC 连接器

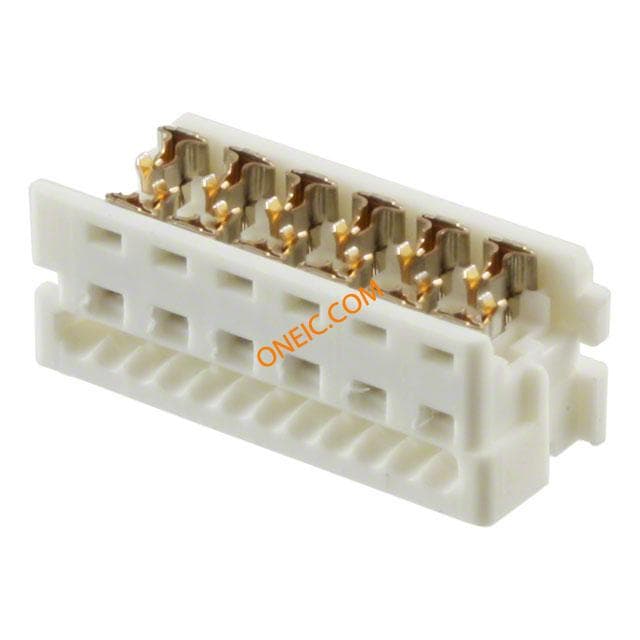

90327-3312
