53261-0471
| Manufacturer | |
| Description | Conn Shrouded Header HDR 4 POS 1.25mm Solder RA SMD Embossed T/R Molex 53261 Series 1.25mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM HDR 4 CKT Right-Angle HEADER, RIGHT ANGLE, SMT, 4WAY .049 pitch picoblade header, smt right angle 4 circuits Pin header 90° SMD 1.25 mm Poles 4 PicoBlade, 53261-0471, Molex Molex PICOBLADE 系列 1.25mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | PicoBlade | Part # Aliases | 0532610471 |
| Product Category | Headers & Wire Housings | Standard Package | Cut Tape |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :MOLEX - PicoBlade 53261 Series | Voltage Rating | 125 V |
| Voltage - Working | :125V | Voltage - Breakdown | :250V |
| Current Rating (Max) | 1A | Insulation Resistance | :100Mohm |
Mechanical
| Depth | :4.2mm | Pitch | 1.25 mm |
| Length | :3.4mm | Weight | 0.01 |
| Packaging | Reel | Termination | Solder |
| Lead Spacing | :1.25mm | Mounting Type | Right Angle |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Package / Case | :GF Nylon UL94V-0 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Termination Style | SMD |
| Number of Contacts | 4 | Contact Termination | :Surface Mount Right Angle |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 53261 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | ||
Environmental
| Operating Temperature | :85°C | ||
Documents & Media
PDF Document
Similar Parts
51021-0400
Molex Connector Corporation
CONN HOUSING 4POS 1.25MM 4 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 4 POS Conn Housing F 4 POS 1.25mm Crimp ST Cable Mount Bag CRIMP HOUSING, 1.25MM, 4WAY 1.25mm Wire-to-Board Receptacle Housing; 4 Circuit Crimp housing 1.25 mm Poles 4 PicoBlade, 51021-0400, Molex Molex PICOBLADE 系列 1.25mm 节距 4 路 直 母 电缆安装 压接连接器外壳
$0.1700
Details

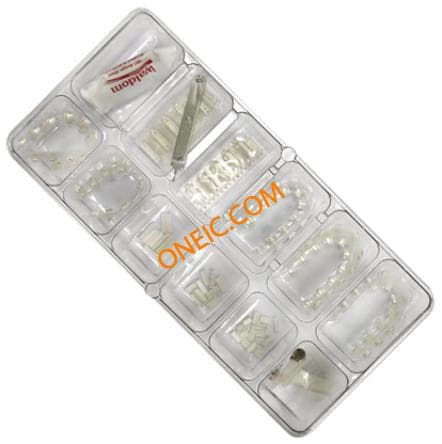

76650-3017
