51005-0500
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount Bag CONN RCPT 5POS 2MM WIRE TO WIRE Receptacle Housing, 2.0mm, WTW, 5w Headers & Wire Housings 2MM RECEPTACLE 5P 2.00mm Pitch Wire-to-Wire Receptacle Housing, 5 Circuits Cable socket housing Pitch2 mm Poles 5 51005, 51005-0500, Molex Molex 2mm 节距 5 路 直 母 电缆安装 压接连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 0510050500 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 500 | Voltage Rating | 125 |
| Number of Poles | 5 | Contact Resistance | ≤20 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Depth | 9.2mm |
| Pitch | 2 mm | Width | 2.7mm |
| Length | 12.6mm | Packaging | Bulk |
| Wire Gauge | 24 AWG | Orientation | 直 |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Mounting Type | Straight | Connector Type | Receptacle |
| Mounting Style | Wire | Number of Rows | 1 |
| Housing Material | PBT | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | 51005 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| Connection Method | Wire-Wire | Base Product Number | 51005 |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | Wire-to-Wire Receptacle |
Environmental
| Operating Temperature | -40...+105 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
76650-0189
molex
COMPONENT KITS, WIRE TO WIRE KIT 2,3,4,5POS 1-2A FREE-HANGING MOUNTING PLUGS, RECEPTACLE 2MM PITCH 125V 28-24 WIRE SIZE KIT CONN 2.0MM WTW I/O Connectors 2.0 Thin Conn Kit Locking Plg Recept 2.0 THIN CONNECTOR KIT LOCKING PLUG & RECEPT
$90.8752
Details
0500138100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-28AWG TIN
$0.8371
Details

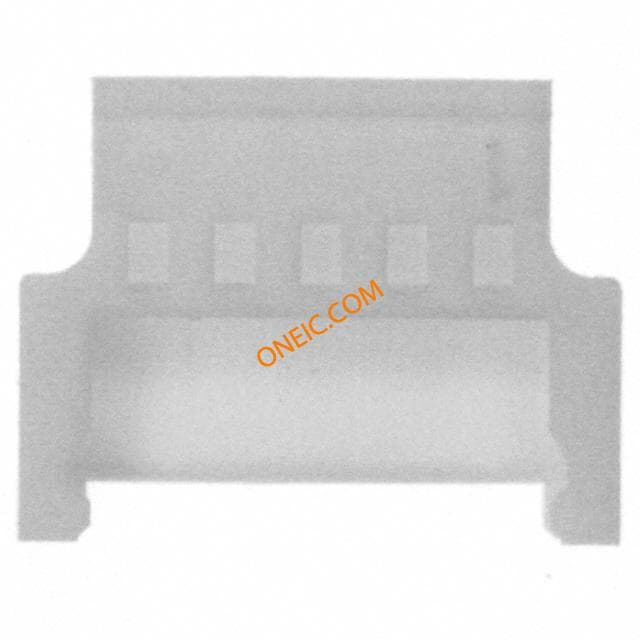

51006-0500
