5031492000
| Manufacturer | |
| Description | Conn Housing PL 20 POS 1.5mm Crimp ST Cable Mount Bag CONN PLUG DUAL 20CKT BEIGE 1.5W/BDualPlgHsg20CktBeige Plug; wire-board; female; PIN:20; w/o terminals; 1.5mm; for cable |
| Category |
Business
| Other Names | 503149-2000 | Standard Package | 1,400 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Beige | Depth | 8.6 |
| Pitch | 0.059" (1.50mm) | Height | 8.95 |
| Weight | 1.25 g | Packaging | Bag |
| Contact Type | Non-Gender Specific | Pitch - Post | 1.5mm |
| Housing Color | Beige | Mounting Type | Straight |
| Connector Type | Plug | Fastening Type | Latch Lock |
| Mounting Style | for cable | Number of Rows | 2 |
| Locking Feature | lock | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 19.3 | Package Quantity | 20 |
| Connector - Cable | plug | Number of Contacts | 20 |
| Contact Termination | Crimp | Number of Positions | 20 |
| 1st Connector Mounting Feature | 2x10 | ||
Product Info
| Spg | 20 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Adapter Series | Clik-Mate | Number of Units | 1 |
Environmental
| Operating Temperature | -25...85°C | ||
Documents & Media
Similar Parts
5025790000
Molex
Contact PIN Crimp ST Cable Mount Reel CONN PLUG TERM 24-28AWG 1.5W/BSinglePlgTermChainW/Plt Contact; female; 24÷28AWG; Clik-Mate; tinned; crimped, on cable
5031542090
Molex
Conn Wire to Board RCP 20 POS 1.5mm Solder ST SMD Embossed T/R CONN RCPT DL VERT 20CKT BEIGE 1.5W/BDlSTRecAssy20CktEmbsTpPkgBeige Socket; wire-board; male; PIN:20; 1.5mm; SMT; Clik-Mate; 2A; tinned sale

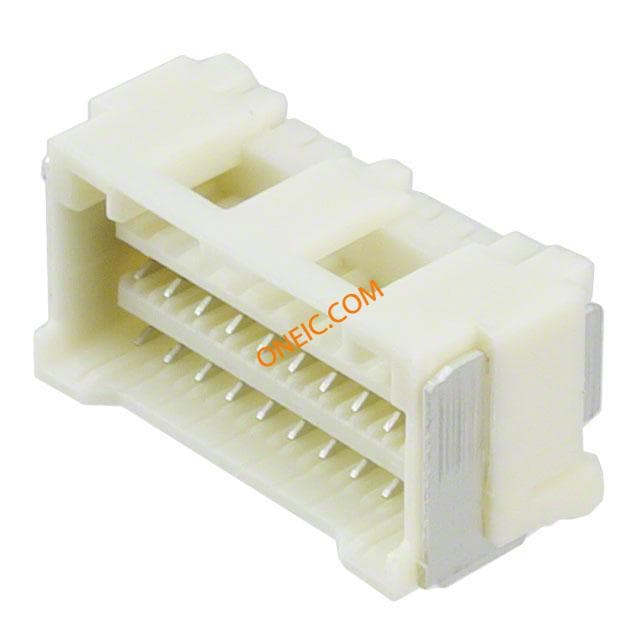

5031482090
