5025850270
| Manufacturer | |

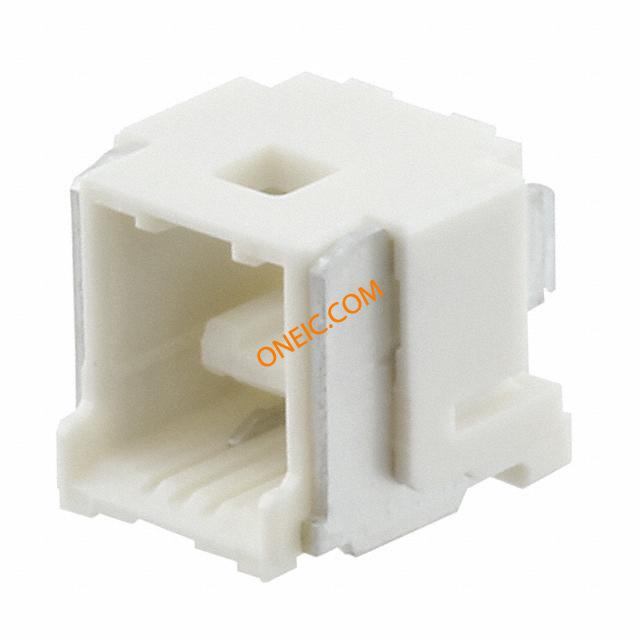

| Description | Conn Wire to Board RCP 2 POS 1.5mm Solder RA SMD Embossed T/R CONN SGL R/A RCPT 2CKT 1.5W/BSglRARecAssy2CktEmbsTpPkg Socket; wire-board; male; PIN:2; 1.5mm; SMT; Clik-Mate; 2A; tinned |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | WM9812CT | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage - Rated | 100V | Contact Resistance | 20 |
| Current Rating (Max) | 2A | Voltage - Input (Min) | 100V |
Mechanical
| Color | Beige | Depth | 7.3 |
| Pitch | 0.059" (1.50mm) | Height | 6.35 |
| Weight | 1.86 g | Packaging | Embossed Tape and Reel |
| Orientation | horizontal | Termination | Solder |
| Contact Form | Center Strip Contact | Contact Type | Center Strip Contact |
| Pitch - Post | 1.5mm | Housing Color | Beige |
| Mounting Type | Surface Mount | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Fastening Type | Latch Holder |
| Number of Rows | 1 | Locking Feature | lock |
| Contact Material | Copper Alloy | Housing Material | Resin |
| Length - Overall | 7.3 | Package Quantity | 20 |
| Connector - Cable | socket | Number of Contacts | 2 |
| Number of Positions | 2 | Contact Finish Thickness | 39µin (1.00µm) |
| Contact Material - Plating | tinned | Number of Positions/Bay/Row | All |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 20 | Type | Wire to Board |
| Gender | RCP | Series | CLIK-Mate™ 502585 |
| Features | Solder Retention | Main Purpose | Solder Retention |
| Adapter Series | Clik-Mate | Number of Units | 1 |
| Output Configuration | Surface Mount, Right Angle | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25...85°C | ||
