5025781000
| Manufacturer | |
| Description | Conn Housing PL 10 POS 1.5mm Crimp ST Bag CONN PLUG HSG 10CKT BEIGE 1.5W/BSinglePlugHsg10CktBeige Plug; wire-board; female; PIN:10; w/o terminals; 1.5mm; for cable |
| Category |
Business
| Other Names | 502578-1000 | Standard Package | 3,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact | Voltage - Input (Min) | 100V |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Beige | Depth | 8.6 |
| Pitch | 0.059" (1.50mm) | Height | 6.1 |
| Weight | 0.46 g | Packaging | Bag |
| Wire Gauge | 24-30 | Contact Type | Non-Gender Specific |
| Pitch - Post | 1.5mm | Housing Color | Beige |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Locking Feature | lock |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 19.3 |
| Package Quantity | 20 | Connector - Cable | plug |
| Number of Contacts | 10 | Contact Termination | Crimp |
| Number of Positions | 10 | 1st Connector Mounting Feature | 1x10 |
Product Info
| Spg | 20 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Adapter Series | Clik-Mate | Number of Units | 1 |
Environmental
| Operating Temperature | -25...85°C | ||
Documents & Media
Similar Parts
5025841060
Molex
Conn Wire to Board RCP 10 POS 1.5mm Solder ST SMD Embossed T/R CONN RCPT 10CKT VERT BEIGE 1.5W/BSglSTAssy10CktBeigeEmbsTpPk
5025851070
Molex
Conn Wire to Board RCP 10 POS 1.5mm Solder RA SMD Embossed T/R CONN SGL R/A RCPT 10CKT 1.5W/BSglRARecAssy10CktEmbsTpPkg Socket; wire-board; male; PIN:10; 1.5mm; SMT; Clik-Mate; 2A; tinned

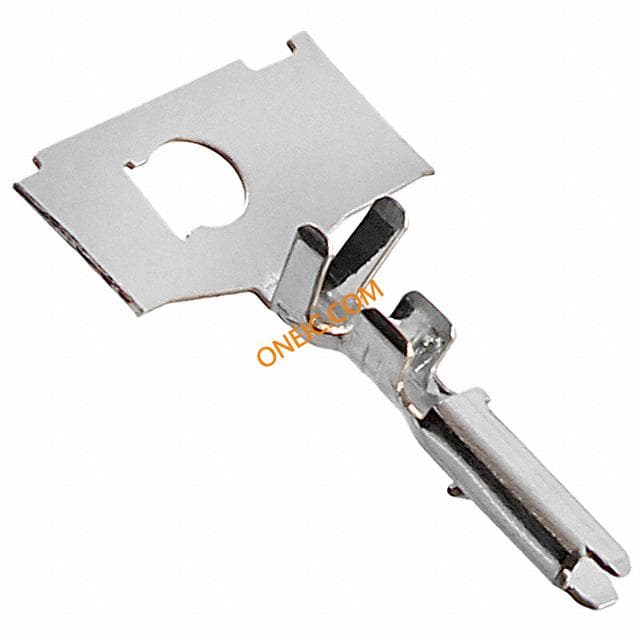

5025790000
