点击放大查看
502380-0400
| Manufacturer | |
| Description | 4w s/r 1.25mm crimp housing Headers & Wire Housings 4P CLIKMATE PLUG POSITIVE LOCK 1.25mm Pitch CLIK-Mate™ Wire-to-Board Housing, Single Row, 4 Circuits CRIMP HOUSING, 1.25MM, 4WAY Crimp housing Pitch1.25 mm Poles 4 CLIK-Mate™, 502380-0400, Molex Molex CLIK-MATE 系列 1.25mm 节距 4 路 直 公 电缆安装 压接连接器外壳 |
| Category |
Business
| Tradename | CLIK-Mate | Product Category | Headers & Wire Housings |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :MOLEX - CLIK-Mate 502380 Series | Voltage Rating | 50 V |
| Contact Resistance | :20mohm | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1 A | Insulation Resistance | :100Mohm |
| Connector - Voltage Input | Plug | ||
Mechanical
| Depth | 7.05mm | Pitch | 1.25mm |
| Width | 5.45mm | Length | 8.1mm |
| Weight | 0.000149 | Material | :Polybutylene Terephthalate |
| Termination | :Crimp | Lead Spacing | :1.25mm |
| Mounting Type | Straight | Contact Finish | :- |
| Number of Rows | 1 | Contact Material | :- |
| Housing Material | PBT | Color - Connectors | :White |
| Number of Contacts | 4 | Contact Termination | :Crimp |
Product Info
| Type | Plug Housing | Gender | Male |
| Series | 502380 | CAD Drawing | 3D CAD Model |
| Product Type | Wire Housings | Application Specifics | Signal, Wire-to-Board |
| For Use With/Related Products | CLIK-Mate Wire-to-Board Connector | ||
Environmental
| Operating Temperature | :85°C | ||
Similar Parts
63811-8200
molex
Connector Accessories Hand Crimp Tool Crimpers HAND CRIMP TOOL KK parallel action tool,0.1in pitch Hand Crimp Tool HAND CRIMP TOOL Hand Crimp Tool; use with 2.54mm KK Terminals 22-30AWG; Crimping plier, 63811-8200, Molex Molex HANDTOOL 系列 KK Crimp Terminals 压接工具 , 适用于22 → 30 AWG 线规格
502386-0470
molex
Conn Wire to Board RCP 4 POS 1.25mm Solder RA SMD Embossed T/R Headers & Wire Housings 4P CLIKMATE RECPT RIGHT ANGLE TIN 1.25mm Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row, Right Angle, 4 Circuits RECEPTACLE, 1.25MM, R/A, 4WAY PCB receptacle, 90° Pitch1.25 mm Poles 4 CLIK-Mate™, 502386-0470, Molex Molex CLIK-MATE 系列 4路 直角 1.25mm节距 表面贴装 印刷电路板插座, 线对板
76650-0185
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1A SURFACE MOUNT RECEPTACLE, RIGHT ANGLE PLUGS, VERTICAL PLUGS 1.25MM PITCH 50V 28-26 WIRE SIZE KIT CONN CLIK-MATE 1.25MM Headers & Wire Housings 1.25MM CLIKMATE KIT WTB COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,5,6POS 1A SURFACE MOUNT RECEPTACLE, RIGHT ANGLE PLUGS, VERTICAL PLUGS 1.25MM PITCH 50V 28-26 ... Kit Description:SMT Dual Positive lock Vertical and Right Angle Plug and Receptacle, 1.25mm (.050") PitchKit Category:Wire to Board Solution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:160

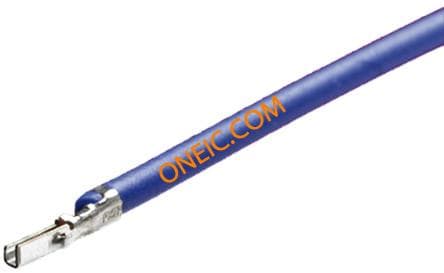

85409-0052
