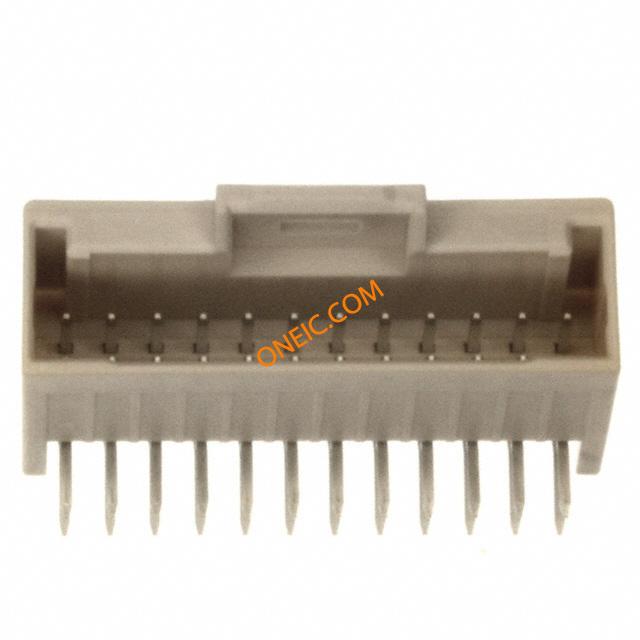

5018762440
| Manufacturer | |
| Description | 2.0 W/B DUAL R/A PLG HSG ASSY 24CKT Conn Shrouded Header HDR 24 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 24POS 2MM R/A TIN 2.0W/BDualR/APlgHsgAssy24Ckt |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact | Voltage - Input (Min) | 250VDC|250VAC |
Mechanical
| Color | Natural | Depth | 14.5 |
| Pitch | 0.079" (2.00mm) | Height | 8.3 |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Nylon 6/6 | Length - Overall | 26 |
| Number of Contacts | 24 | Number of Positions | 24 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
