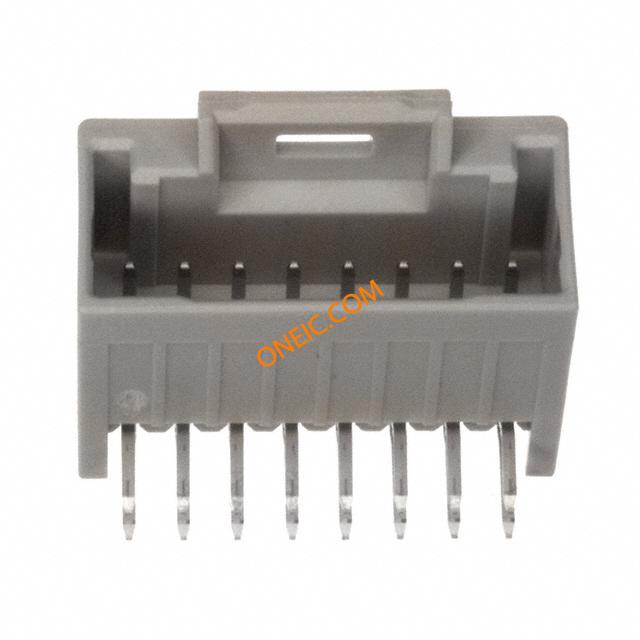

5018761640
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 16POS 2MM R/A TIN 2.0W/BDualR/APlgHsgAssy16Ckt |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact A | Voltage - Input (Min) | 250VDC|250VAC |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Color | Natural | Depth | 14.5 mm |
| Pitch | 0.079" (2.00mm) | Height | 8.3 mm |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 18 mm | Number of Contacts | 16 |
| Number of Positions | 16 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25C to 85C | ||
