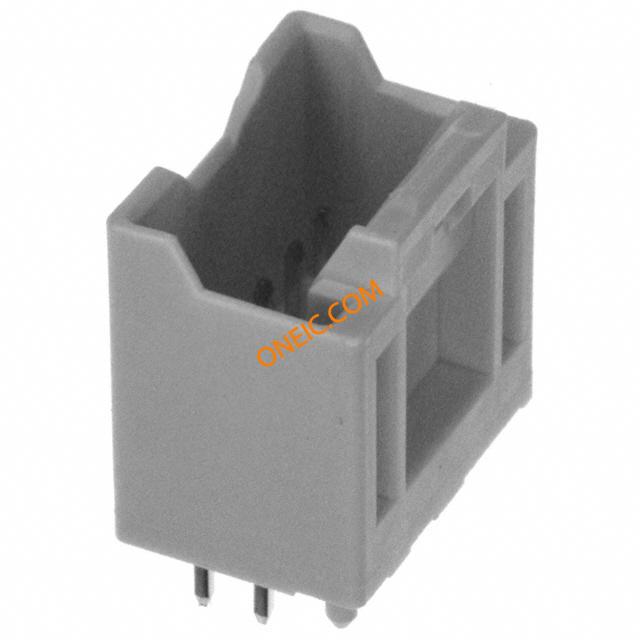

5016451020
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 2MM VERT TIN 2.0W/BDualGridPlugHsgAssy10CktBeige |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 2/Contact | Voltage - Input (Min) | 250VDC|250VAC |
Mechanical
| Color | Natural | Depth | 8.2 |
| Pitch | 0.079" (2.00mm) | Height | 12 |
| Packaging | Tray | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Copper |
| Fastening Type | Latch Holder | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Nylon 6/6 |
| Length - Overall | 12 | Number of Contacts | 10 |
| Number of Positions | 10 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Board Guide | Number of Positions Loaded | All |
