5013300800
| Manufacturer | |
| Description | Conn Housing F 8 POS 1mm Crimp ST Cable Mount Bag CONN RCPT 1MM VERT 8POS 1.0W/B1-RowRecHsg8Ckt Plug; wire-board; female; PIN:8; w/o terminals; 1mm; for cable |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1/Contact A | Voltage - Input (Min) | 50V |
| Voltage - Supply (Min) | 50V | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | White | Depth | 5.5 mm |
| Pitch | 0.039" (1.00mm) | Height | 4.76 mm |
| Weight | 0.05 g | Packaging | Bag |
| Contact Type | Female Socket | Pitch - Post | 1mm |
| Housing Color | White | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Mounting Style | for cable | Number of Rows | 1 |
| Locking Feature | lock | Housing Material | Nylon 66 |
| Length - Overall | 9.7 mm | Connector - Cable | plug |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | 1st Connector Mounting Feature | 1x8 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | F | Adapter Series | PICO-CLASP |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | -40C to 85C | ||
Similar Parts

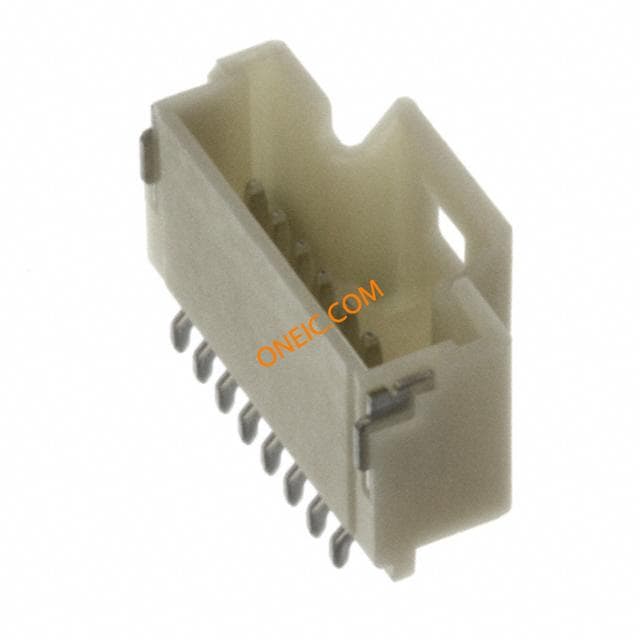

501568-0807
molex
Conn Shrouded Header HDR 8 POS 1mm Solder RA SMD Embossed T/R CONN HEADER 1MM 8POS SMD R/A Molex 501568 Series 1mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 8Ckt R/AWaferAssyEmbsTpPk HEADER, 8POS, 1ROW, 1MM Molex PICO-CLASP 系列 1mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 1A , 表面安装
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

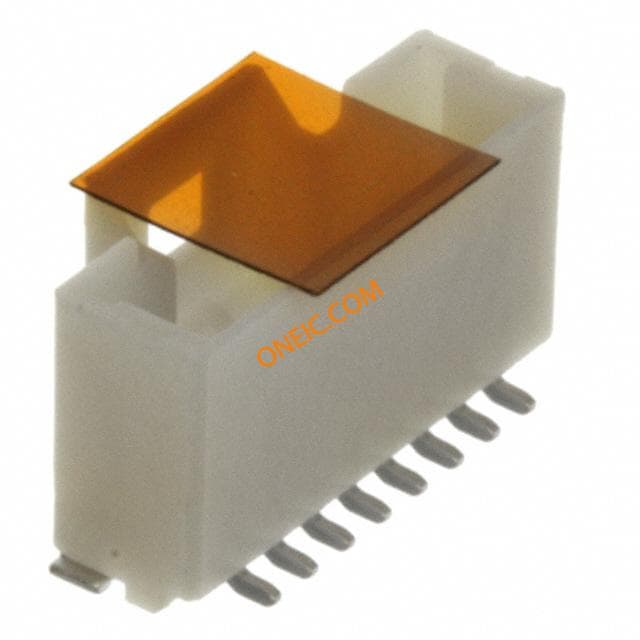

501331-0807
