501330-0200
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 1mm Crimp ST Bag CONN RCPT 1MM VERT 2POS 2w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 2Ckt Female Housing 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Friction Lock, 2 Circuits HOUSING, 1.0MM, PICO-CLASP, 2WAY Crimp Housing Pitch1 mm Poles 1 x 2 Pico-Clasp™, 501330-0200, Molex Molex PICO-CLASP 系列 1mm 节距 2 路 直 母 压接连接器外壳 |
| Category |
Business
| Tradename | Pico-Clasp | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Electrical
| Range deg/s | :MOLEX - Pico-Clasp 501330 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | White | Depth | 5mm |
| Pitch | 1 mm | Width | 2.94mm |
| Length | 3.7mm | Weight | 0.005 |
| Packaging | Bulk | Contact Type | Female Socket |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | :- | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | 501330 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Pico-Clasp Wire-to-Board Connector | ||
Similar Parts
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
5013340100
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET CRIMP 28-32AWG 5013340100 1.0WtBCrimpRecTermLse Contact; female; 28÷32AWG; PICO-CLASP; tinned; crimped, on cable

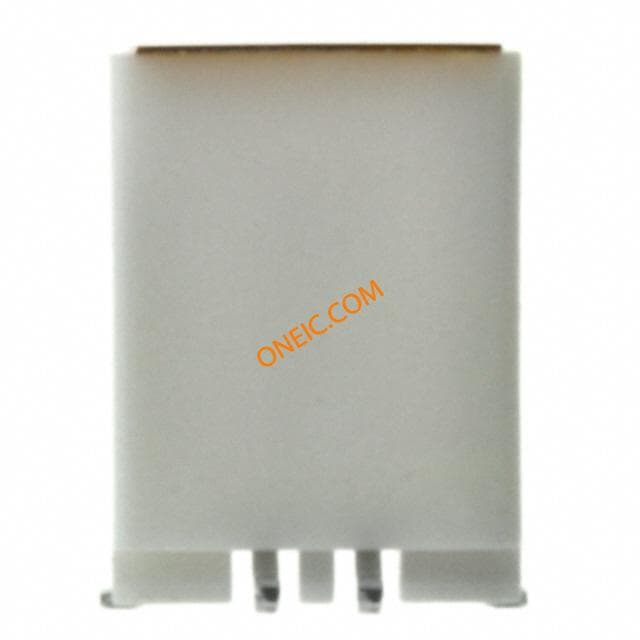

5013310207
Molex
Conn Shrouded Header HDR 2 POS Solder ST SMD Embossed T/R CONN HEADER 1MM 2POS SMD TIN 1.0WtB1-RowStrWaferAssyEmbsTpPkg2Ckt Socket; wire-board; male; PIN:2; 1mm; SMT; PICO-CLASP; 50V; 1A
501331-0207
Molex Connector Corporation
CONN HEADER 1MM 2POS SMD TIN Molex 501331 Series 1mm Pitch 2 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 1.0 WtB 2Ckt StrWaferAssyEmbsTpPk Conn Shrouded Header HDR 2 POS Solder ST SMD Embossed T/R HEADER, 1.0MM, PICO-CLASP, 2WAY Header Pitch1 mm Poles 1 x 2 Pico-Clasp™, 501331-0207, Molex Molex PICO-CLASP 系列 1mm节距 2路 (2排) 直 PCB 针座, 焊接端接, 1A , 表面安装

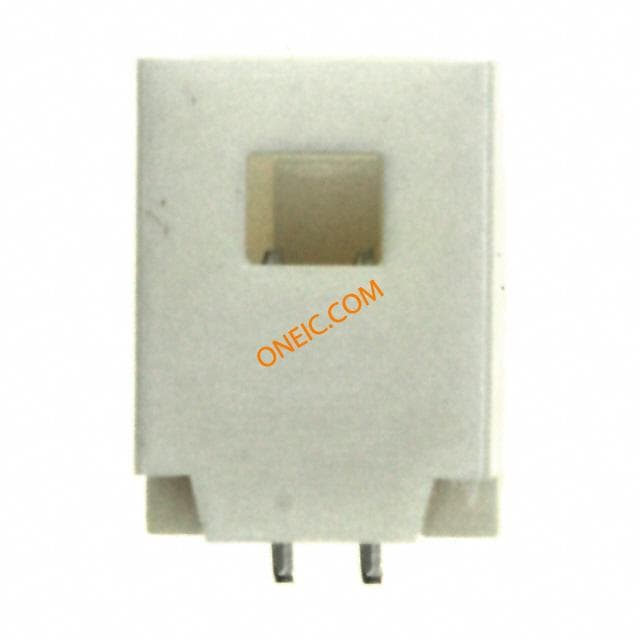

5015680207
