点击放大查看
46765-2001
| Manufacturer | |
| Description | Conn Micro HDMI RCP 19 POS 0.4mm Solder RA SMD 19 Terminal 1 Port Embossed T/R Type D 19 Way Female Right Angle HDMI Connector 30V HDMI, Displayport & DVI Connectors Micro HDMI Recpt RA SMT HYBRID TABS CONNECTOR, HDMI, RCPT, 19POS 19路 D 型 HDMI 直角 母, 30 V |
| Category |
Business
| Part # Aliases | 0467652001 | Product Category | HDMI, Displayport & DVI Connectors |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 30 V | Current Rating (Max) | 0.8A |
| Contact Rating @ Voltage | 0.8 A | ||
Mechanical
| Size | Type D | Weight | 0 |
| Packaging | Reel | Orientation | Right Angle |
| Termination | Solder | Mounting Type | Right Angle |
| Connector Type | :Micro HDMI | Contact Finish | Gold |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Termination Style | SMD | Number of Contacts | 19 |
| Contact Termination | :Surface Mount Right Angle | 1st Connector Mounting Type | :PCB |
Product Info
| Gender | Female | Series | 46765 |
| Product Type | Micro-HDMI | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
68786-0001
molex
Cable Assembly D-Sub 1m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 1M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 1M Micro to STD CABLE ASSY, HDMI-D M, HDMI-A M, 1M MICRO HDMI CABLE ASSEMBLY 高清视频电缆组件 微型 HDMI
68786-0003
molex
Cable Assembly D-Sub 2m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 2M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 2M Micro to STD Micro HDMI*-to-HDMI* Cable Assembly, CAT 2, AWG 32, 2.0m, Lead-Free CABLE ASSY, HDMI-D M, HDMI-A M, 2M Molex 高清视频电缆组件 , 微型 HDMI
68786-0002
molex
Cable Assembly D-Sub 1.5m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 1.5M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 1.5M Micro to STD Molex 高清视频电缆组件 , 微型 HDMI

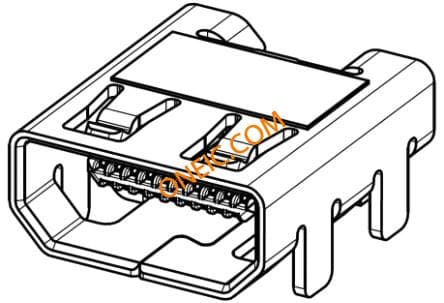

46765-1001
