44441-2003
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 7.49mm Crimp ST Bag 3 way single row cable socket,14-18 awg Headers & Wire Housings RECPT SINGLE ROW 3P Conn Housing F 3 POS 7.49mm Crimp ST Bag HOUSING, RECEPTACLE, 3 WAY, NYLON .295 Pitch Sabre Receptacle Housing, Single Row, PA Polyamide Nylon 6/6, UL 94V Socket housing Pitch7.5 mm Poles 3 Sabre™, 44441-2003, Molex Molex SABRE 系列 1 行 7.49mm 节距 3 路 直 母 压接连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Sabre | Part # Aliases | 0444412003 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 18 A |
Mechanical
| Depth | 27.38mm | Pitch | 7.49mm |
| Width | 15.24mm | Length | 23.32mm |
| Weight | 0.002 | Wire Gauge | 18-14 |
| Mounting Type | Straight | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | :Nylon UL94V-0 |
| Material - Body | :Nylon (Polyamide) | Housing Material | Nylon |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 3 | Number of Positions | :3 |
Product Info
| Gender | Female | Series | 44441 |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | Sabre Receptacle | ||
Environmental
| Operating Temperature | :75°C | ||
Documents & Media
PDF Document
Similar Parts
76650-0160
molex
Free Hanging Plug And Receptacle Kit KIT CONN SABRE 7.5MM WTW I/O Connectors SABRE 7.5MM KIT Kit Description:Free Hanging Plug and ReceptacleKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:246 SABRE PWR CONNECTOR KIT FREE HANGING PLUG & RECEPT
$215.3084
Details

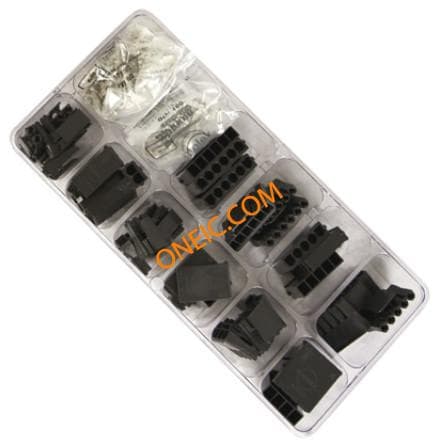

76650-3005
