点击放大查看
43640-0800
| Manufacturer | |
| Description | Conn Housing PL 8 POS 3mm Crimp ST Panel Mount Bag CONN PLUG 8POS 3MM SGL PANEL MT Plug Housing 3.00mm single row 8w Headers & Wire Housings 3MM MICRO-FIT Plug House 8 CKT Male contact housing single row Pitch3 mm Poles 1 x 8 Micro-Fit, 43640-0800, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 8 路 直 公 面板安装 压接连接器外壳 |
| Category |
Business
| Tradename | Micro-Fit 3.0 | Part # Aliases | 0436400800 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 3000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 1 x 8 |
| Current Rating (Max) | 2.5 A | Connector - Voltage Input | Male |
Mechanical
| Color | Black | Depth | 24.53mm |
| Pitch | 0.118" (3.00mm) | Packaging | Bulk |
| Orientation | 直 | Contact Form | Male Pin |
| Contact Type | Male Pin | Mounting Type | Panel Mount, Snap-In |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 1 |
| Housing Material | PET | Number of Contacts | 8 |
| Contact Termination | Crimp | Number of Positions | 8 |
Product Info
| Note | Contacts Not Provided | Type | Plug Housing |
| Gender | Male | Series | 43640 |
| CAD Drawing | 3D CAD Model | Product Type | Wire Housings |
| Connection Method | Wire-Wire | Base Product Number | 43640 |
| Output Configuration | Panel Mount, Snap-In | Application Specifics | Power, Wire-to-Wire |
| For Use With/Related Products | Micro-Fit 3.0 Plug | ||
Environmental
| Operating Temperature | -40...+105 °C | ||
Documents & Media
Similar Parts
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD

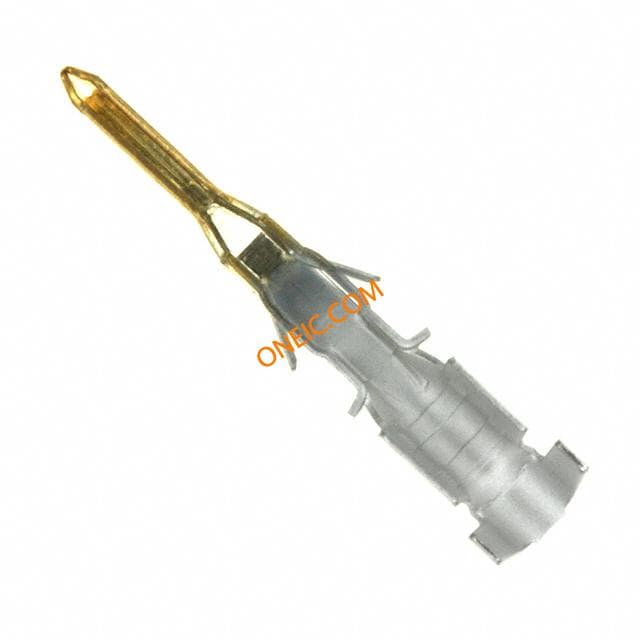

0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned

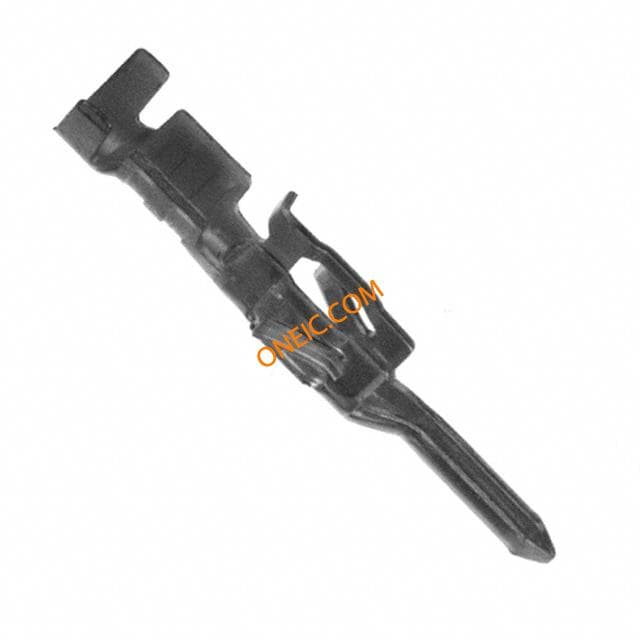

0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!

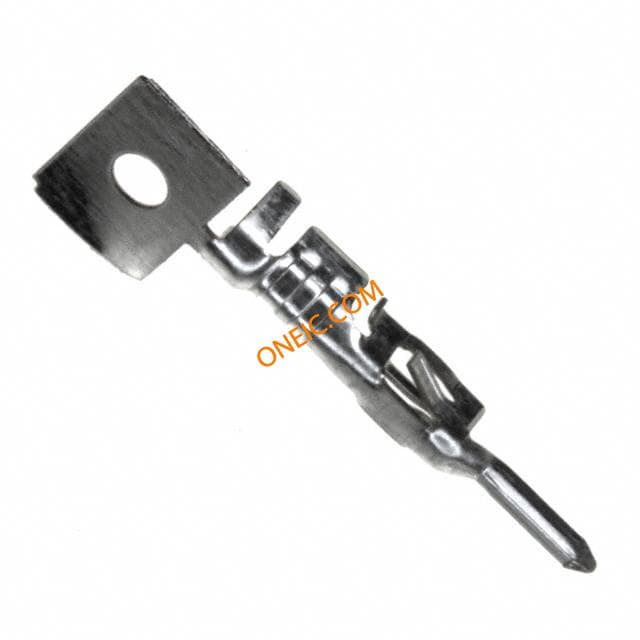

0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!

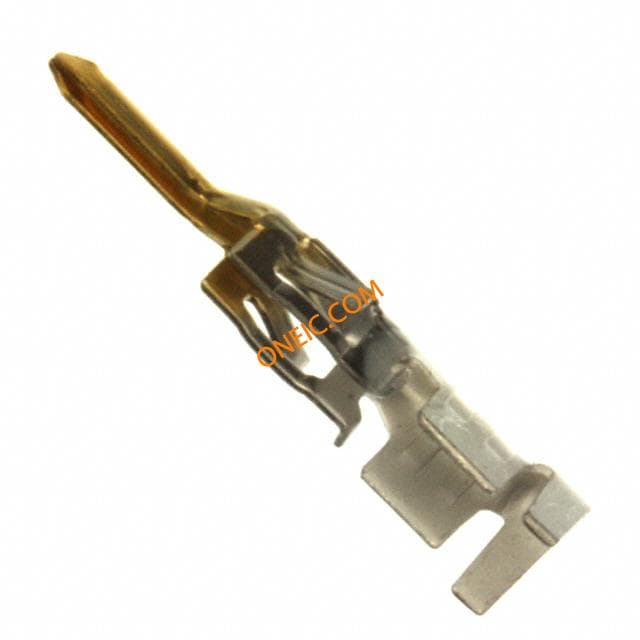

0430310008
