36638-0002
| Manufacturer | |
| Description | Automotive Connectors 48P RA HEADER 1 PORT,BLK,PEG CMC single port Header 48 way Conn CMC HDR 48 POS Solder RA Thru-Hole Tray HEADER, CMC, SINGLE PORT, R/A, 48WAY Automotive Connectors 48P RA HEADER 1 PORT, BLK, PEG Molex CMC 系列 4行 48路 通孔 黑色 公 管座 , 焊接端接 |
| Category |
Business
| Product | Headers | Part # Aliases | 0366380002 |
| Product Category | Automotive Connectors | Factory Pack Quantity | 84 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366930 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 6A |
Mechanical
| Color | Black | Depth | 32mm |
| Pitch | 2.5 mm, 3.5 mm, 3.7 mm | Width | 34.9mm |
| Height | 30.6mm | Weight | 0.01 |
| Material | Polyester | Packaging | Tray |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | :Wire to Board | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 4 |
| Contact Material | Brass | Housing Material | PET |
| 1st Contact Gender | :- | Color - Connectors | Black |
| Number of Contacts | 48 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 48 | Shell Size - Insert | :- |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | PCB Connector | Gender | Male |
| Series | 36638 | CAD Drawing | 3D CAD Model |
| RF Family/Standard | PCB Headers | ||
Environmental
| Operating Temperature | +100°C | ||
Documents & Media
Similar Parts
64322-1029
molex
Contact SKT Crimp ST Cable Mount Reel CMC 0.75mm sq crimp terminal Automotive Connectors SN PLTD .75MMF/M TRM Reel of 11500 CONTACT, SOCKET, 18 AWG, CRIMP CONTACT, CRIMP, RECEPTACLE, 18AWG, REEL Molex CMC CP TERMINAL 系列 压接接线端子, 使用于汽车连接器 64322
64325-1023
molex
Connector Accessories CMC Blind Polyamide Orange CMC 1.5 mm cavity blind Plug Automotive Connectors CMC BLIND PLUG TERM CAVITY 1.5MM CMC Blind Plug cavity 1.50mm WIRE PLUG, CMC Molex CMC 系列 64325

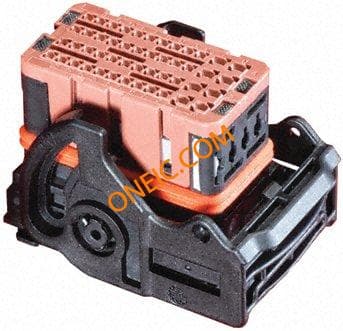

64320-1311
