点击放大查看
34729-0080
| Manufacturer | |
| Description | Conn Wire to Board F 8 POS 2.54mm Crimp ST Cable Mount Tray STAC 64 8w Receptacle, Blk Pol A Automotive Connectors STAC64 RCPT 8 CKT BLK POL A RECEPTACLE, STAC64, POL A, 8WAY Molex STAC64 系列 2行 8路 通孔 黑色 母 印刷电路板连接器 , 压接端接 |
| Category |
Business
| Product | Headers | Tradename | Stac64 |
| Part # Aliases | 0347290080 | Standard Package | Trays |
Compliance
| RoHS | Compliant | Tariff No | 85389099 |
Electrical
| Current Rating (Max) | 10A | ||
Mechanical
| Color | Black | Depth | 25.5mm |
| Pitch | :2.54mm | Width | 14.76mm |
| Height | 22.7mm | Weight | 0.002 |
| Packaging | Tray | Termination | Crimp |
| Mounting Type | Through Hole | Contact Finish | Tin |
| Mounting Style | Wire to Board | Number of Rows | 2 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Color - Connectors | Black | Number of Contacts | 8 |
| Contact Termination | :Cable | Number of Positions | 8 |
| Shell Size - Insert | :8 Way | ||
Product Info
| Type | PCB Connector | Gender | Female |
| Series | 34729 | CAD Drawing | 3D CAD Model |
| Application Specifics | Wire to Board | ||
Environmental
| Operating Temperature | +100°C | ||
Similar Parts
34691-0080
Molex
Automotive Connectors STAC64 RA HDR 8 CKT 8 CKT BLK POL A TRAY STAC 64 8W Header, R/A Blk Pol A Conn Wire to Board HDR 8 POS 2.54mm Solder RA Thru-Hole Tray HEADER, STAC64, R/A, POL A, 8WAY Molex STAC64 系列 2行 8路 通孔 黑色 公 印刷电路板连接器

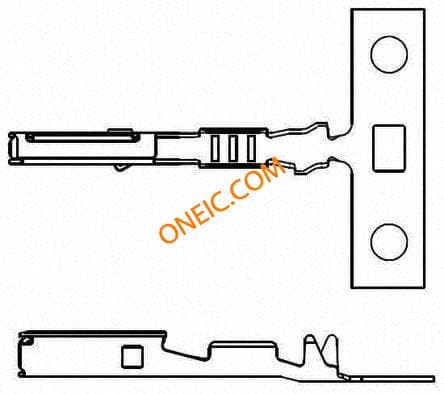

34803-0211
