33482-1601
| Manufacturer | |
| Description | Automotive Connectors MX150 2X8P MALE PLG POLAR A W/O CPA CONN PLUG 16POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 16 Circuits, Polarization A, without Connector Position Assurance, Black RECTANGULAR POWER HOUSING, PLUG, CABLE |
| Category |
Business
| Product | Connectors | Tradename | MX150 |
| Part # Aliases | 0334821601 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 300 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Current Rating (Max) | 22 A | ||
Mechanical
| Color | Black | Pitch | 0.138" (3.50mm) |
| Weight | 0.02 | Packaging | Bulk |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 2 |
| Locking Feature | :- | Material - Body | :Polystyrene (PS) |
| Housing Material | Polystyrene (PS) | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 16 |
| Shell Size - Insert | :- | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | 33482 | Features | Sealed |
| For Use With/Related Products | :33000 MX150, 33011 Male Terminals, 34345-0001 MLX 150 Cavity Plug Sealed Housings | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0330000002
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 16-20AWG CRIMP Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A
0330111004
molex
Conn Contact M Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 16-20AWG
0330111006
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 22AWG
0330000003
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 22AWG CRIMP 0330000003 Contact; male; 22AWG; MX150; tinned; crimped; for cable; 22A
0330111002
Molex, LLC
. 0330111002 - Blade Contact Gold 14 AWG Crimp from Molex. from now!
0330001001
Molex
Contact PIN Crimp ST Cable Mount Reel CONN MALE TERM 14AWG TIN
0330001002
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 16-20AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A
0330000001
Molex, LLC
. 0330000001 - Blade Contact Tin 14 AWG Crimp from Molex. from now!
0330110006
Molex, LLC
. 0330110006 - Blade Contact Gold 22 AWG Crimp from Molex. from now!
0330110002
Molex
Contact PIN Crimp ST Cable Mount Reel CONN MALE TERM GOLD 14AWG
0330001003
Molex, LLC
. 0330001003 - Blade Contact Tin 22 AWG Crimp from Molex. from now!
0330110004
Molex
Contact PIN Crimp ST Cable Mount Reel CONN MALE TERM 16-20AWG GOLD

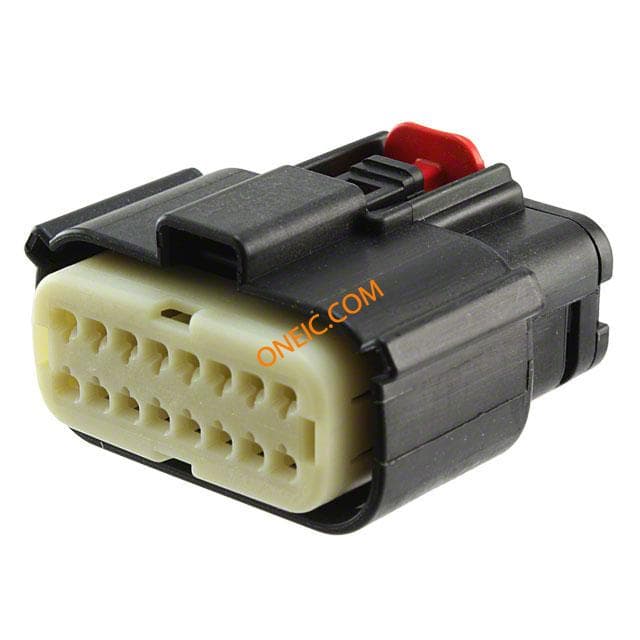

0334721606
Molex Inc
CONN RCPT 16POS DUAL BLACK

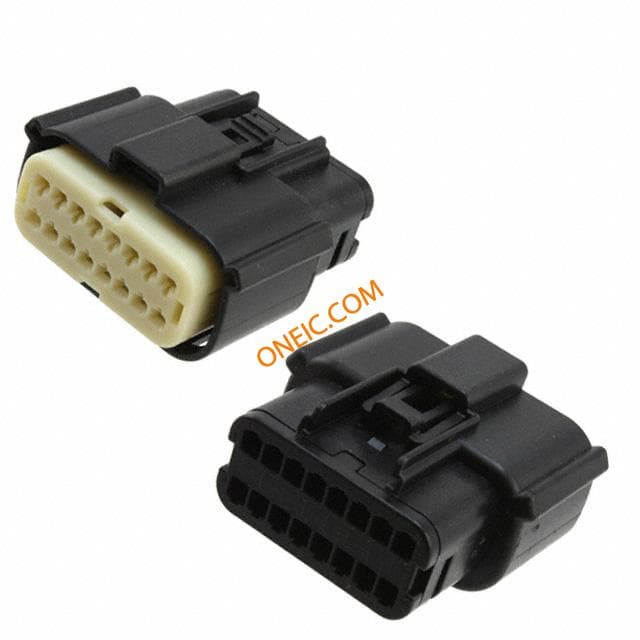

0334721601
