33482-0801
| Manufacturer | |
| Description | Automotive Connectors MX150 2X4P MALE PLG POLAR A W/O CPA CONN PLUG 8POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 8 Circuits, Polarization A, without Connector Position Assurance, Black RECTANGULAR POWER HOUSING, PLUG, CABLE |
| Category |
Business
| Product | Connectors | Tradename | MX150 |
| Part # Aliases | 0334820801 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 600 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Current Rating (Max) | 22 A | ||
Mechanical
| Color | Black | Pitch | 0.138" (3.50mm) |
| Weight | 0.02 | Packaging | Bulk |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 2 |
| Locking Feature | :- | Material - Body | :Polystyrene (PS) |
| Housing Material | Polystyrene (PS) | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 8 |
| Shell Size - Insert | :- | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | 33482 | Features | Sealed |
| For Use With/Related Products | :33000 MX150, 33011 Male Terminals, 34345-0001 MLX 150 Cavity Plug Sealed Housings | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0330000002
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 16-20AWG CRIMP Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A
0330111004
molex
Conn Contact M Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 16-20AWG
0330111006
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 22AWG
0330000003
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 22AWG CRIMP 0330000003 Contact; male; 22AWG; MX150; tinned; crimped; for cable; 22A
0330111002
Molex, LLC
. 0330111002 - Blade Contact Gold 14 AWG Crimp from Molex. from now!

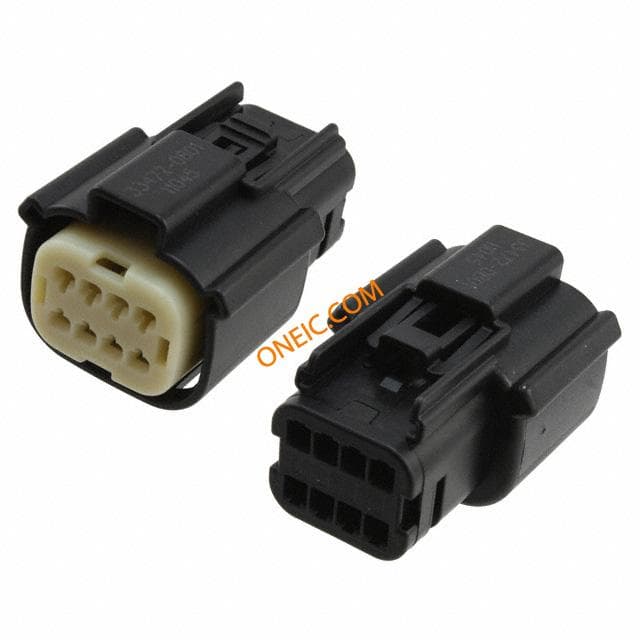

33472-0801
