33482-0601
| Manufacturer | |
| Description | Automotive Connectors 2X3 1.5 BLD BLK A/6 CONN PLUG 6POS DUAL BLACK Conn Housing RCP 6 POS 3.5mm Crimp ST Cable Mount Bag Molex MX150 系列 2 行 3.5mm 节距 6 路 直 公 电缆安装 压接连接器外壳 |
| Category |
Business
| Product | Connectors | Tradename | MX150 |
| Part # Aliases | 0334820601 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 950 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 22 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Black | Depth | 55.85mm |
| Pitch | 0.138" (3.50mm) | Width | 22.13mm |
| Length | 18.94mm | Packaging | Bulk |
| Orientation | 直 | Contact Form | Blade Pin |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Fastening Type | Locking Ramp |
| Mounting Style | Wire | Number of Rows | 2 |
| Housing Material | Polystyrene (PS) | Termination Style | Crimp |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | 33482 | Features | Sealed |
| Main Purpose | Sealed | Base Product Number | 33482 |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | 金色插入式接线端子 33011、MLX 150 空心插头密封 34345-0001、MX150 底壳 34950-0620、MX150 底壳 34950-0640、MX150 锡插入式接线端子 33000 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0330000002
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 16-20AWG CRIMP Contact; male; 16÷20AWG; MX150; tinned; crimped; for cable; 22A

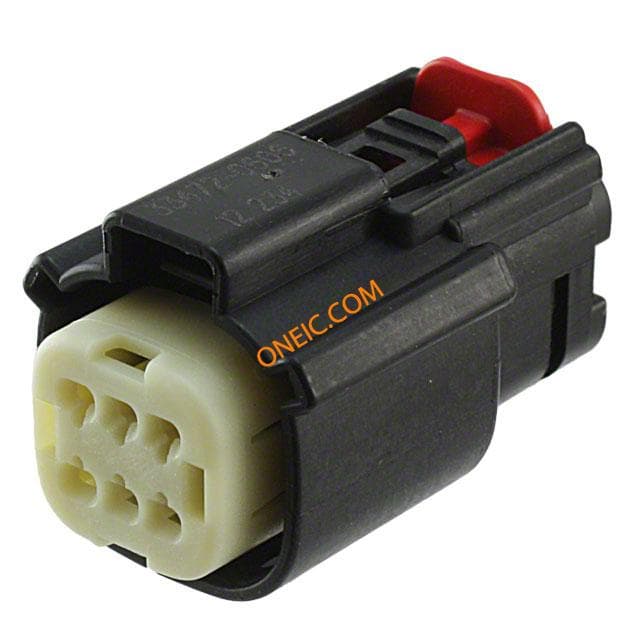

0334720606
Molex, LLC
. 0334720606 - 6 Position Rectangular Housing Connector Receptacle Black 0.138" (3.50mm) from Molex. from now!
0330111004
molex
Conn Contact M Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 16-20AWG
0330111006
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel CONN BLD TERM GOLD 22AWG
0330000003
molex
Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact PIN Crimp ST Cable Mount Reel TERM MALE TIN 22AWG CRIMP 0330000003 Contact; male; 22AWG; MX150; tinned; crimped; for cable; 22A
0330111002
Molex, LLC
. 0330111002 - Blade Contact Gold 14 AWG Crimp from Molex. from now!

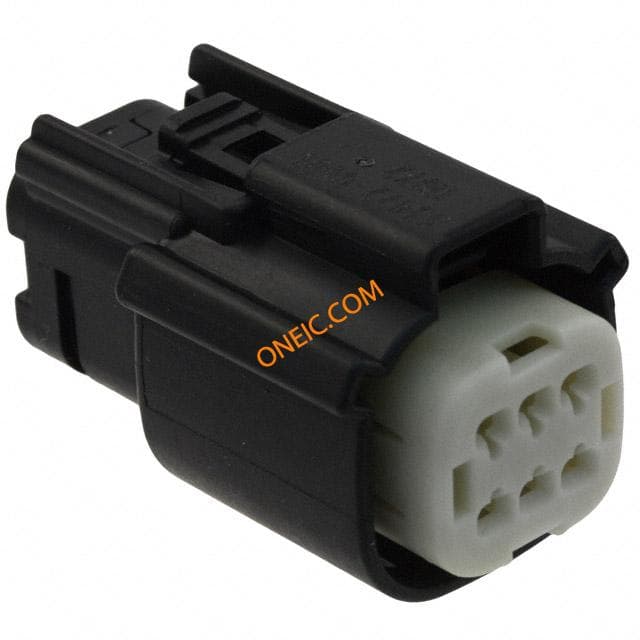

0334720601
