点击放大查看
26-61-5100
| Manufacturer | |
| Description | Conn Wire to Board HDR 10 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 10POS .156 R/A GOLD Molex 41792 Series 3.96mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings 10P HEADER TIN CONNECTOR, HEADER, 10POS, 1ROW, 3.96MM Molex KK 396 系列 3.96mm节距 10路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 |
| Category |
Business
| Tradename | KK | Part # Aliases | 0026615100 41792-0027 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 125 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
Electrical
| Range deg/s | :MOLEX - KK 41792 Series | Voltage Rating | 250 V |
| Current Rating (Max) | 7A | ||
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Weight | 0.02 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Friction Lock |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 10 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 10 | Contact Length - Mating | 0.450" (11.43mm) |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | 41792 | CAD Drawing | 3D CAD Model |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
0009503101
molex
Conn Housing RCP 10 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 10POS .156 W/RAMP
0009521100
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009521101
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009482109
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009482105
Molex, LLC
. 0009482105 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482107
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009483105
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 10POS .156 R/A PCB
0009482108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009521103
Molex, LLC
. 0009521103 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!

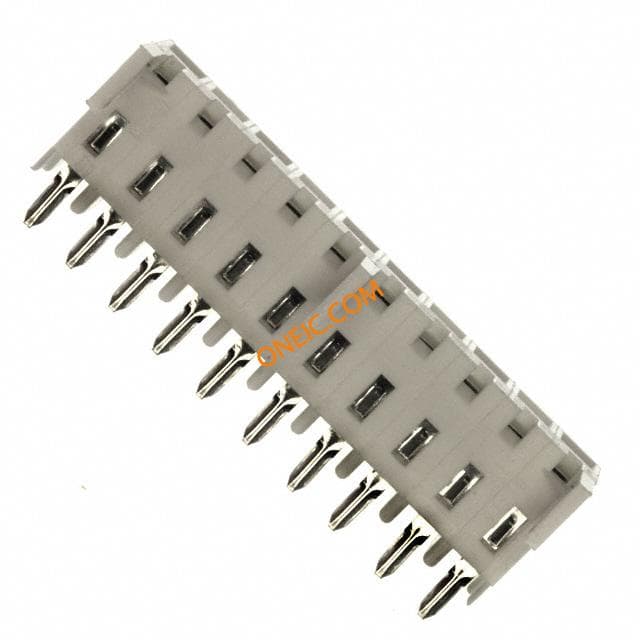

0009484108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .156 VERT PCB
0009482102
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009523105
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
09-62-3103
molex
KK 156 PCB ASSY TOP 10 CKT CONN RECEPT 10POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Top Entry 10 CKT Conn Socket Strip SKT 10 POS 3.96mm Solder ST Thru-Hole Tray
0009521106
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB

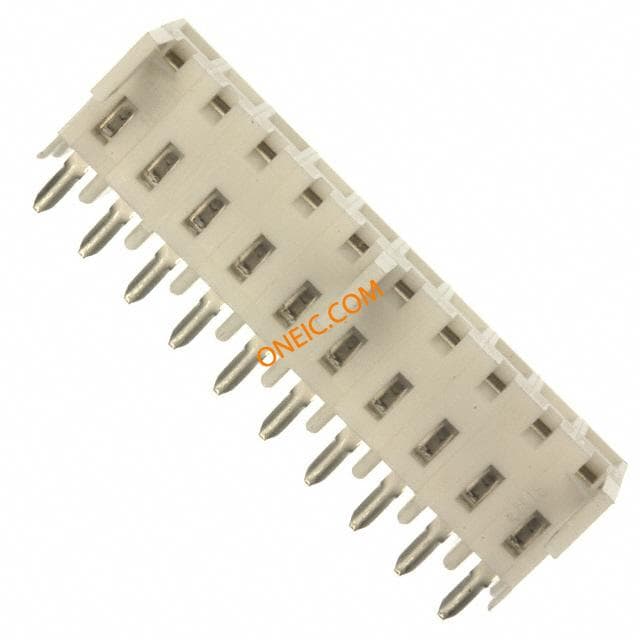

0009483106
