22-01-2125

Manufacturer	Molex, LLC
Description	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 12POS .100 W/RAMP/RIB 12 way socket housing,2.54mm pitch Headers & Wire Housings 12 CRT TERM HOUSING HOUSING, CRIMP, RECEPTACLE, 2.54MM, 12P 2.54mm KK Crp Trm Hsg il W/LRmp 12Ckt Molex KK 254 系列 1 行 2.54mm 节距 12 路直母电缆安装压接连接器外壳
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Tradename	KK	Part # Aliases	0022012125 6471-12(I)
Product Category	Headers & Wire Housings	Standard Package	Bulk
Factory Pack Quantity	2000

Compliance

RoHS

Lead free / RoHS Compliant

Tariff No

85369010

Electrical

Voltage Rating	250 V	Voltage - Working	:250V
Contact Resistance	:20mohm	Dielectric Strength	:1.5kV/mm
Current Rating (Max)	:2.5A

Mechanical

Color	Natural	Depth	12.7mm
Pitch	2.54 mm	Length	30.94mm
Weight	0.002	Packaging	Bulk
Wire Gauge	22-28 AWG	Contact Type	Non Gendered
Mounting Type	Straight	Release Force	:0.57N
Connector Type	Receptacle	Fastening Type	Locking Ramp
Mounting Style	Wire	Number of Rows	1
Package / Case	:White Nylon UL94V-0	Insertion Force	:2N
Housing Material	Nylon	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	12
Contact Termination	Crimp	Number of Positions	12

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	RCP	Series	6471
Features	Polarizing Key	CAD Drawing	3D CAD Model
Product Type	Receptacles / Sockets - Housings	For Use With/Related Products	:2759, 4809 KK Crimp terminals

Environmental

Operating Temperature

:105°C

Documents & Media

PDF Document

22-01-2xx5

Similar Parts

0022232121

molex

Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Tube Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

$1.8564

Details

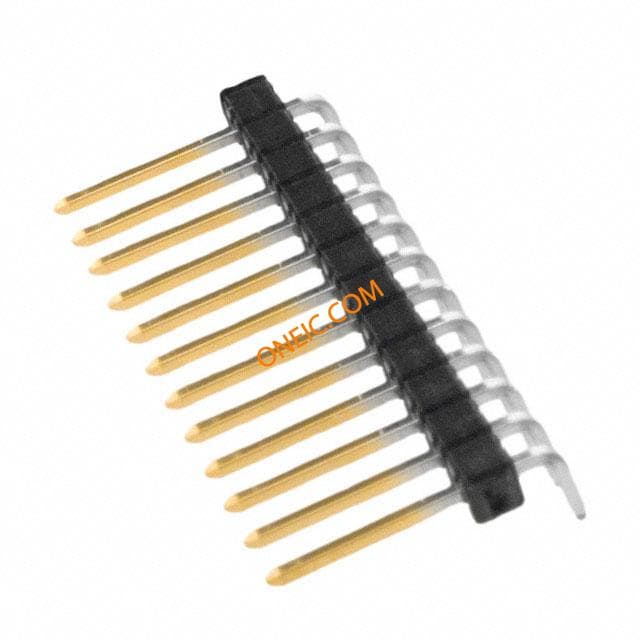

0022288123

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD

$2.1787

Details

0022032121

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

$3.3157

Details

0022284121

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN

$2.6187

Details

22-28-4125

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD Headers & Wire Housings 12CKT VERT HDR

$6.5280

Details

0022052121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A TIN

$4.4370

Details

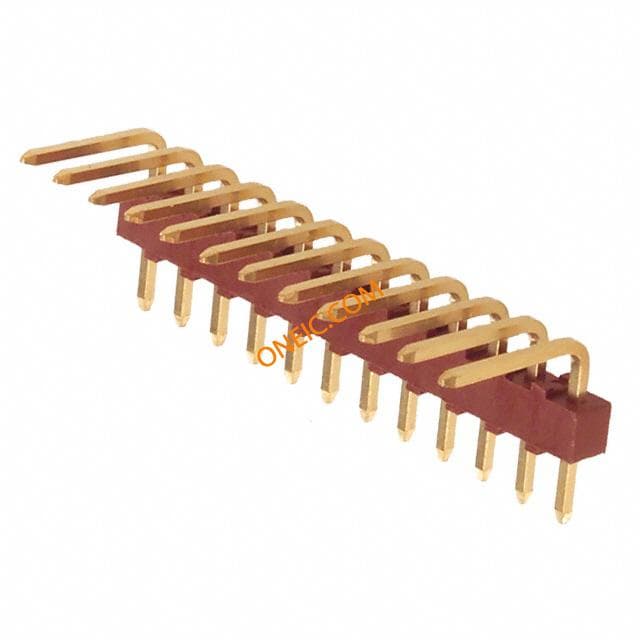

0022122121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD

$11.1078

Details

22-28-4122

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT TIN Headers & Wire Housings KK 100 Hdr Assy Bkwy Assy Bkwy 12 Ckt Tin

$1.8564

Details

22-28-4126

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 12POS .100 VERT GOLD

$2.8980

Details

22-28-8125

molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 12 Ckt 30 SGold

$2.6309

Details

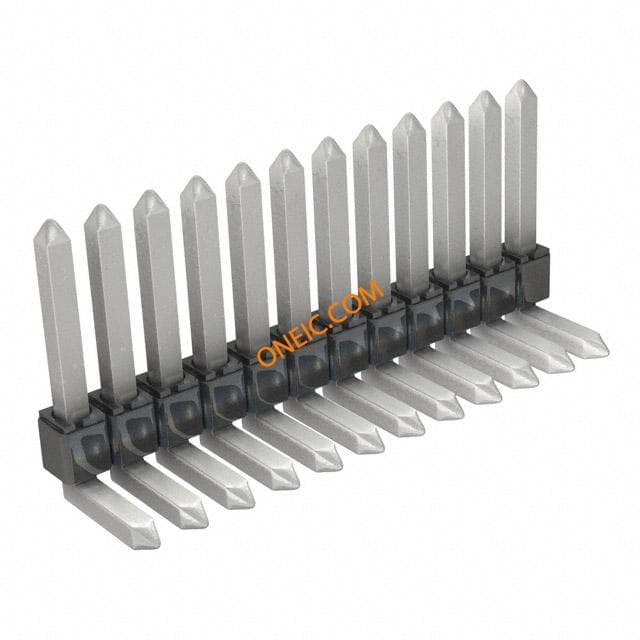

0022288121

Molex

Conn Unshrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 12POS .100 R/A TIN

$2.2440

Details

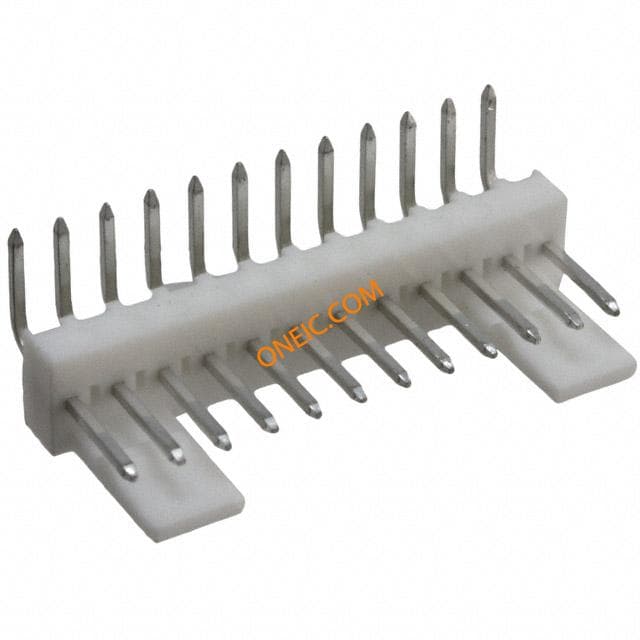

0022057128
