点击放大查看
19432-0001
| Manufacturer | |
| Description | Automotive Connectors 4CKT FEMALE RECPT 10-12AWG CONN RCPT 4POS 10-12AWG DUAL RECEPTACLE, 10-12 AWG, 4WAY 4 CKT RECPT 10-12 AWG MX150 4CKTRECPT10-12AWGMX150 |
| Category |
Business
| Product | Housings | Tradename | MX150L |
| Part # Aliases | 0194320001 | Product Category | Automotive Connectors |
| Standard Package | 1 | Factory Pack Quantity | 240 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Working | :600V |
| Voltage - Breakdown | :2200V | Current Rating (Max) | 18 A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Black | Pitch | 0.300" (7.62mm) |
| Weight | 0.0196 | Packaging | Bulk |
| Wire Gauge | :12AWG | Row Spacing | 0.386" (9.80mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Holder | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 4 |
| Wire Gauge or Range - AWG | :10AWG | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 19432 | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
19436-0413
Molex
Automotive Connectors MX150L 04P 10-12AWG REAR PNL MNT CONN PLUG 4POS 10-12AWG PNL MT
19433-0001
Molex
Automotive Connectors 4CKT PLUG 10-12AWG CONN PLUG 4POS 10-12AWG DUAL PLUG, 10-12 AWG, 4WAY 4 CKT PLUG 10-12 AWG MX150L 4CKTPLUG10-12AWGMX150L
19434-0003
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 10-12AWG TIN Automotive Connectors .300 LOOSE 10-12 FEMALE SN TERMINAL, FEMALE, 10-12 AWG FEMALE TERM 10-12 AWG MX150
0194340001
Molex
Contact SKT Crimp ST Cable Mount T/R TERM FEMALE TIN 10-12AWG CRIMP
0194340002
Molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE TERM 8AWG TIN

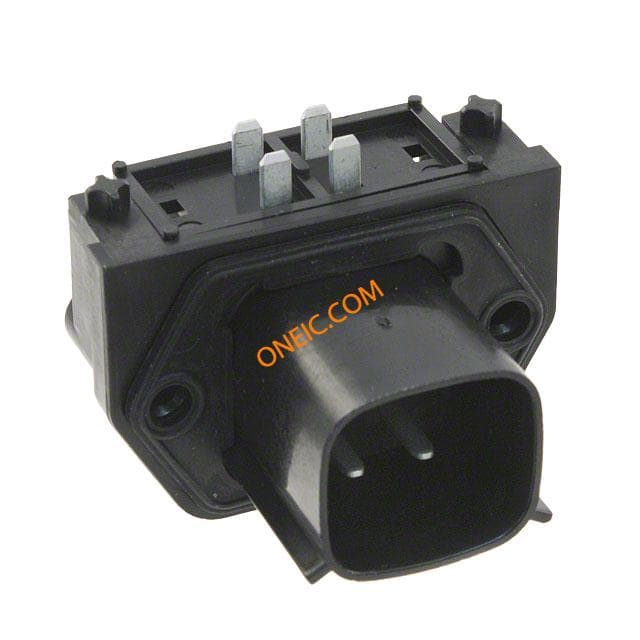

0194370029
