19418-0017
| Manufacturer | |
| Description | Automotive Connectors RECPT 2P 16-14 AWG single row CONN RECEPT 2POS 14-16AWG SINGLE |
| Category |
Business
| Product | Housings | Tradename | MX150L |
| Part # Aliases | 0194180017 | Product Category | Automotive Connectors |
| Standard Package | 10 | Factory Pack Quantity | 312 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current Rating (Max) | 18 A | ||
Mechanical
| Color | Natural | Pitch | 5.84 mm |
| Packaging | Bag | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Fastening Type | Latch Holder |
| Mounting Style | Wire | Number of Rows | 1 |
| Housing Material | Polystyrene (PS) | Termination Style | Crimp |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 19418 | Features | IP67 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
0194200003
molex
Contact SKT Crimp ST Cable Mount Reel CONN FEMALE TERM 16-14AWG GOLD
76650-0152
Molex
Automotive Connectors MX150L PANEL MNT KIT KIT CONN MX150L PANEL MNT MX150L CONNECTOR KIT DUAL ROW PANEL MNTSEALED PLUG & RECEPT, IP-67
19427-0040
Molex
Automotive Connectors 2 Ckt R/A Header w/out Mounting Holes CONN HEADER 2POS RIGHT ANGLE TIN
19419-0007
Molex
Automotive Connectors PLUG 2P 16-14 AWG single row CONN PLUG 2POS 14-16AWG SINGLE 2 way 14-16AWG IP67 plug connector Cable plug Pitch5.84 mm Poles 2 MX150L™, 19419-0007, Molex Molex MX150L 系列 5.84mm 节距 2 路 直 公 压接连接器外壳
19419-0008
Molex
Automotive Connectors PLUG 2P 22-18 AWG single row CONN PLUG 2POS 18-22AWG SINGLE 2 way 18-22AWG IP67 plug connector 2 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 2 MX150L™, 19419-0008, Molex Molex MX150L 系列 5.84mm 节距 2 路 直 公 压接连接器外壳

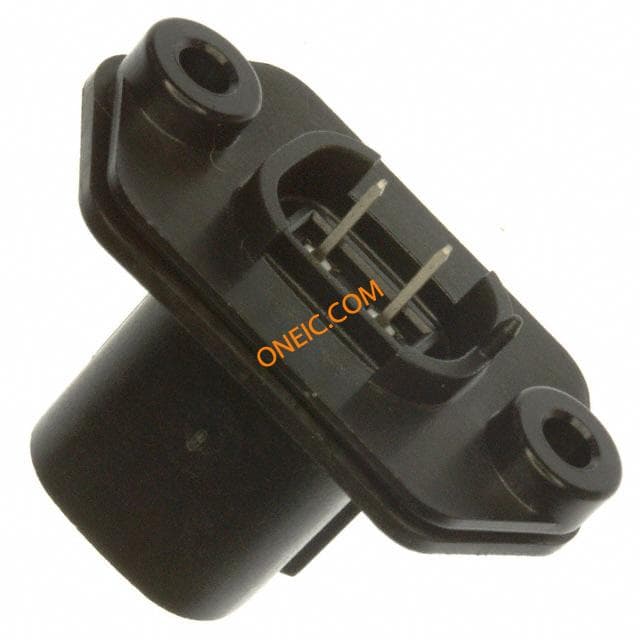

19428-0009
Molex
Automotive Connectors 2 Ckt Vert. Header low profile CONN HEADER 2POS VERTIAL TIN
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!

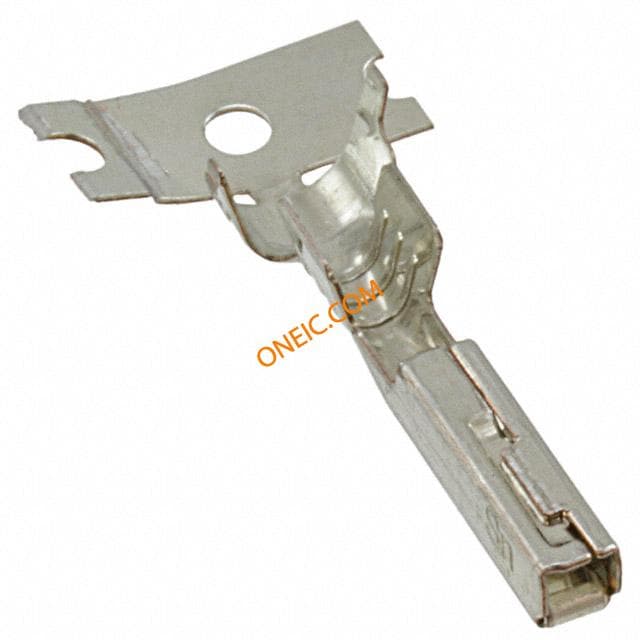

0194200001
Molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET TERM 14-16AWG TIN Contact; female; 14÷16AWG; MX150L; tinned; crimped; for cable; 18A

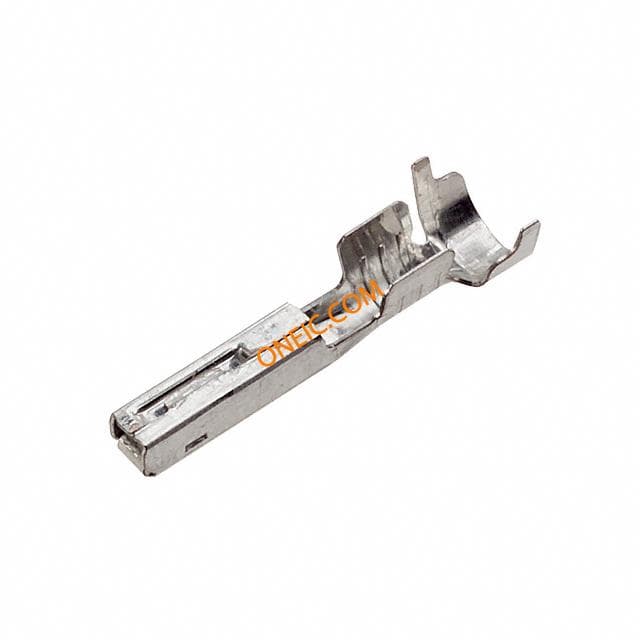

0194200009
