14-56-2132
| Manufacturer | |
| Description | Conn IDC Connector F 13 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 13POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 13Ckt |
| Category |
Business
| Tradename | C-Grid, SL | Part # Aliases | 0014562132 A-70400-0677 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 480 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Fastening Type | Latch Lock |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester Alloy |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 13 |
| Number of Positions | 13 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Series | 70400 | Features | Closed End |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0050650213
molex
Conn Housing F 13 POS 2.54mm Crimp ST Bag SL PMC WTOW SR MODBRNCH 13POS

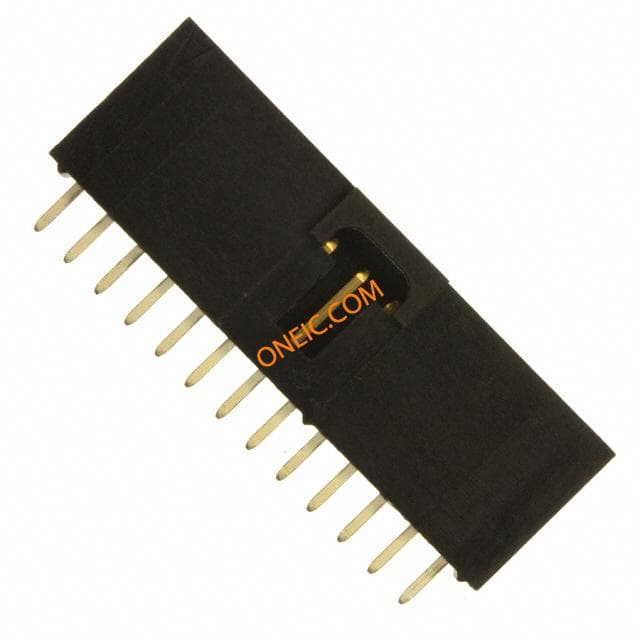

0705430012
molex
Conn Shrouded Header HDR 13 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 13POS .100 VERT GOLD
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0621000700
molex
Connector Accessories Tool IDT Discrete Handtool Module For SL TOOL HAND DIESET MODULE

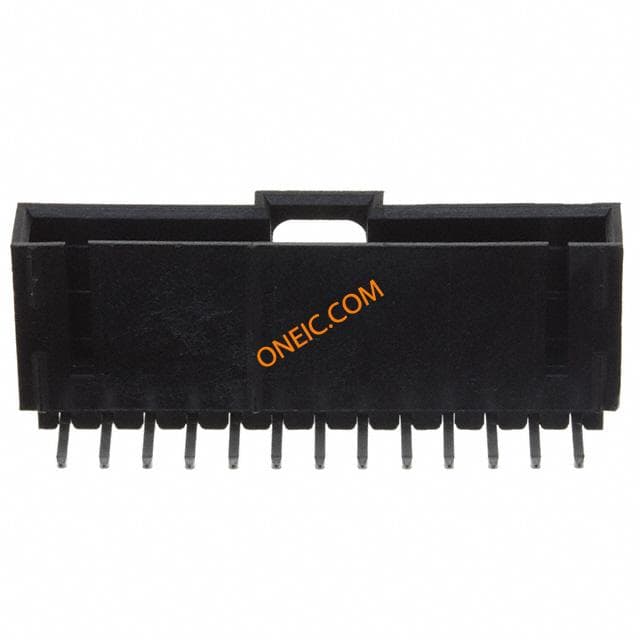

0705530012
