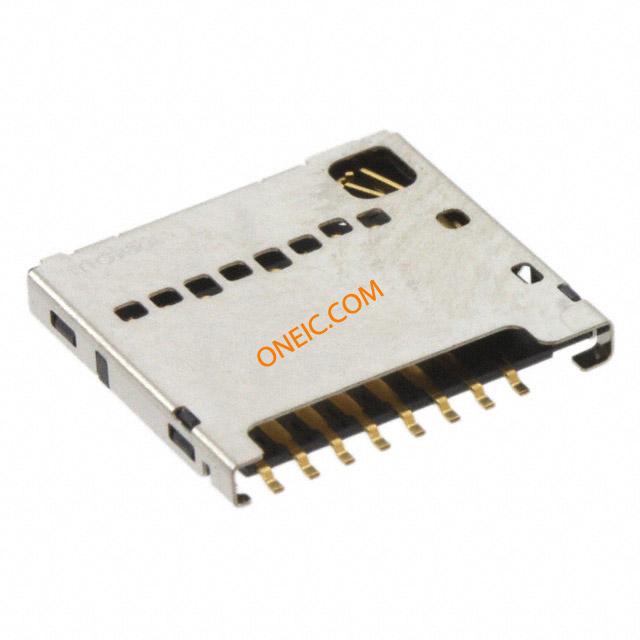

1040310811
| Manufacturer | |
| Description | Conn Micro SD Card SKT 8 POS 1.1mm Solder RA SMD Embossed T/R 0.5A/Contact CONN MEMORY CARD MICROSD SMD microSDsocketPush/Pull1.42H |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 47 Days | Subcategory | Connector Memory Card |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 0.5/Contact A | Voltage - Input (Min) | 10VDC|10VAC |
Mechanical
| Depth | 11.4 | Pitch | 1.1 mm |
| Height | 1.42 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Connector | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 11.14 |
| Mounting Feature | Normal, Standard - Top | Height Above Board | 0.056" (1.42mm) |
| Number of Contacts | 8 | Number of Positions | 10 (8 + 2) |
| Contact Finish Thickness | 8µin (0.20µm) | Insertion, Removal Method | Push In, Pull Out |
Product Info
| Type | Micro SD Card | Gender | SKT |
| Card Type | Secure Digital - microSD™ | Ejector Side | Push-Pull |
| Industry Aliases | 104031-0811 | ||
