10-01-3026
| Manufacturer | |
| Description | Conn Housing F 2 POS 5.08mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 5.08MM Crimp Housing 5.08mm SPOX,2way Headers & Wire Housings 2P .200 SPOX HSG 5.08mm Pitch SPOX™ Crimp Terminal Housing, 2 Circuits 2 position Crimp Housing; mates with 5279, 5280, 5281, 5282; use with 5194, 5225 Molex SPOX 系列 5.08mm 节距 2 路 直 母 压接连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SPOX | Part # Aliases | 0010013026 5197-02 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency Marking | CSA, UL, TUV |
| Material Flammability Rating | UL94V-2 | ||
Electrical
| Voltage Rating | 250 V | ||
Mechanical
| Color | Natural | Depth | 16mm |
| Pitch | 0.200" (5.08mm) | Width | 8.85mm |
| Length | 10.08mm | Packaging | Bulk |
| Orientation | 直 | Termination | Crimp |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Housing Material | Nylon | Length - Overall | 10.08 mm |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | PCB Socket |
| Gender | Female | Series | 5197 |
| Manufacturer | 5197 Series | Product Type | Receptacles / Sockets - Housings |
| Base Product Number | 5197 | For Use With/Related Products | SPOX Connector |
Environmental
| Operating Temperature | -40 to +105 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
0008701031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Reel
$0.2414
Details
10-02-1027
Molex
Headers & Wire Housings 5.08MM VERT HDR 2P CONN HEADER 2POS 5.08MM VERT TIN
$1.1288
Details
08-70-1028
Molex
Headers & Wire Housings 22-28 CRIMP BULK CONN TERM FEMALE 22-28AWG TIN
$0.5875
Details
0039000021
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG TIN
$0.5120
Details
0008701030
Molex
Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 18-24AWG TIN Conn Contact RCP 1 POS Crimp ST Cable Mount Loose Piece
$0.7140
Details

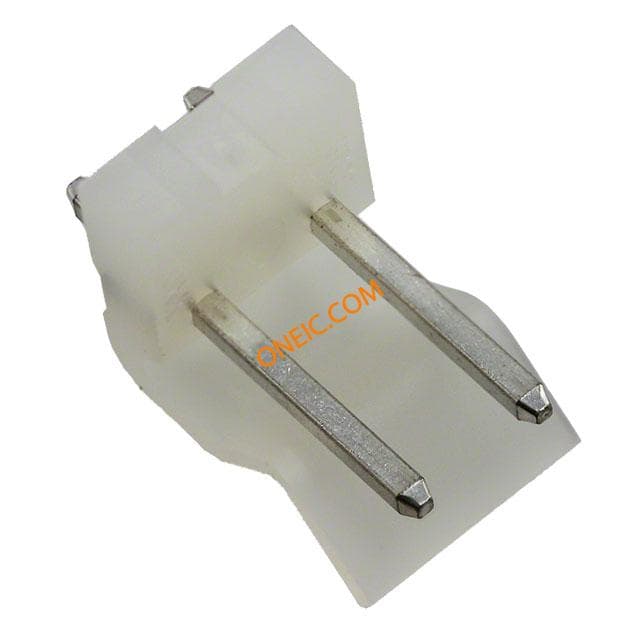

0010321021
