点击放大查看
0908140808
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 8 POS 2.54mm Solder ST SMD Tube CONN HEADER 8POS 1.27MM SMD TIN |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 15 mohm | Current Rating (Max) | 1.2/Contact A |
| Voltage - Input (Min) | 250VDC|250VAC | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Natural | Depth | 6.9 mm |
| Pitch | 0.050" (1.27mm) | Height | 5.15 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Blade Pin | Housing Color | Beige |
| Mounting Type | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Nylon 4/6 | Length - Overall | 13.94 mm |
| 1st Contact Gender | HDR | Number of Contacts | 8 |
| Number of Positions | 8 | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness | 118.1µin (3.00µm) | ||
Product Info
| Type | Ribbon Cable Connector | Features | Board Guide |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Similar Parts
0903273360
molex
Conn IDC Connector RCP 8 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT

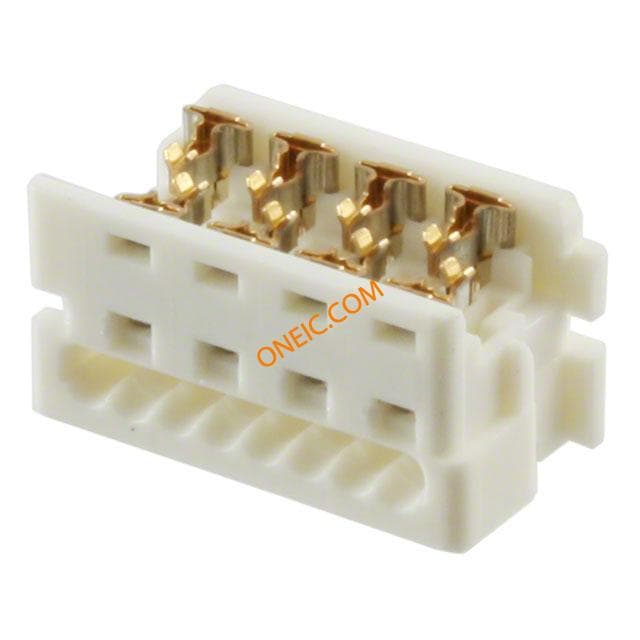

0903273308
