0903270371
| Manufacturer | |
| Description | Conn IDC Connector RCP 14 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-A WHT |
Business
| Standard Package | 4,500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 1.2/Contact | Voltage - Input (Min) | 250V |
Mechanical
| Color | White | Depth | 7 |
| Pitch | 0.100" (2.54mm) | Height | 6.4 |
| Packaging | Embossed Tape and Reel | Wire Type | Ribbon Cable |
| Wire Gauge | 26-28 AWG | Termination | IDT |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Cable Mount | Connector Type | Receptacle |
| Contact Finish | Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 20.29 | Cable Termination | IDC |
| Number of Contacts | 14 | Number of Positions | 14 |
| Contact Finish Thickness | 78.7µin (2.00µm) | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Feed Through | ||
Similar Parts
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0903250014
molex
Conn Ribbon Cable Connector HDR 14 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 14POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 14; tinned; 1.2A sale
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS

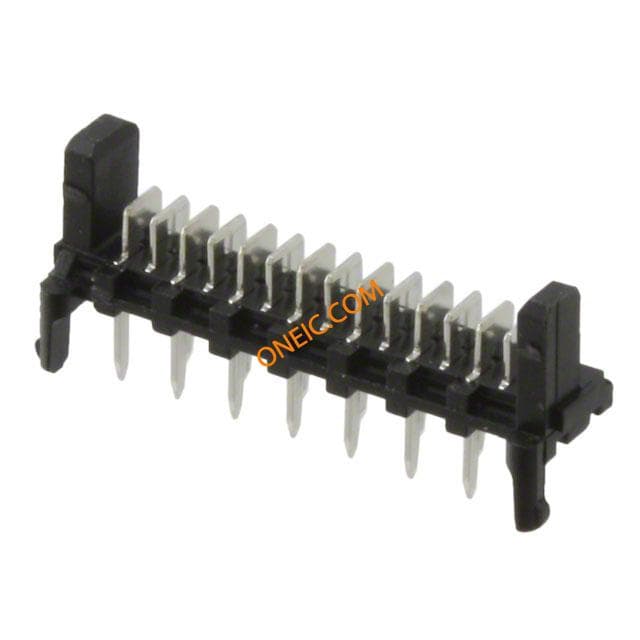

90325-9014
Molex Connector Corporation
CONN HEADER 14POS 1.27MM TIN T/H Header 1.27mm pF-50, RA, low prof, 14w, Headers & Wire Housings PICOFLEX 14P HDR SN R/A LP W/PCB PEGS Conn Ribbon Cable Connector HDR 14 POS 1.27mm Solder ST Thru-Hole Tube HEADER, 1.27MM, 14WAY Molex PICOFLEX 系列 14路 1.27mm节距 公 IDC 连接器 , 通孔

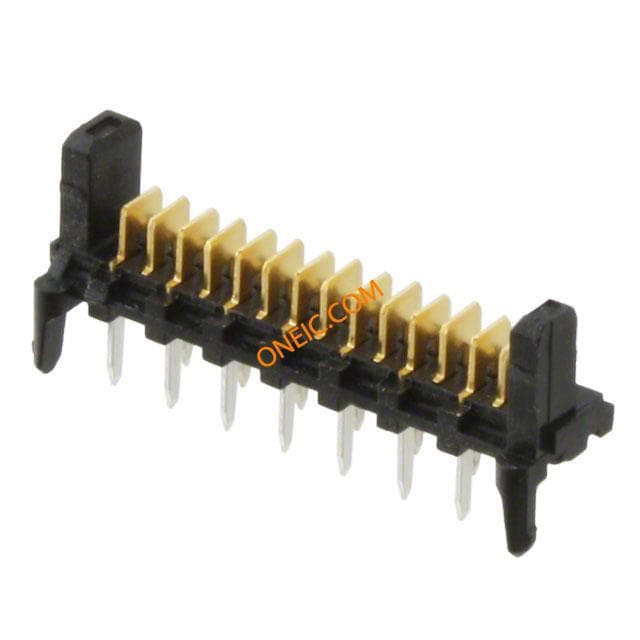

90325-7014
