0903250010
| Manufacturer | |
| Description | Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 10; tinned; 1.2A |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage - Max | 250V | Contact Resistance | 15 mohm |
| Current Rating (Max) | 1.2/Contact A | Voltage - Input (Min) | 250V |
| Voltage - Supply (Min) | 250V | ||
Mechanical
| Color | Black | Depth | 5.98 mm |
| Pitch | 1.27 mm | Height | 6.4 mm |
| Weight | 0.67 g | Packaging | Bag |
| Termination | Solder | Contact Type | Blade Pin |
| Pitch - Post | 1.27mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Tin Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 16.94 mm |
| Package Quantity | 250 | Connector - Cable | socket |
| 1st Contact Gender | HDR | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Finish Thickness | 118.1µin (3.00µm) |
| Contact Material - Plating | tinned | 1st Connector Mounting Feature | 1x10 |
Product Info
| Spg | 250 | Type | Ribbon Cable Connector |
| Features | Board Lock | Adapter Series | PicoFlex |
| Number of Units | 1 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
0903270366
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-D WHT
0903273364
molex
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Embossed T/R 1.27MM PF LOPRO IDT RL-B WHT

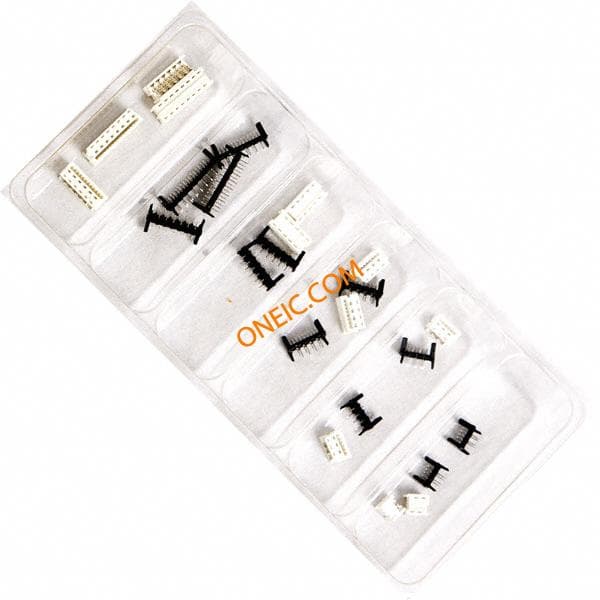

76650-0122
