0901420006
| Manufacturer | |
| Description | Conn Housing F 6 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .100" DUAL Plug; wire-board; C-Grid III; female; PIN:6; w/o terminals; 2.54mm |
| Category |
Business
| Lead Time | 51 Days | Subcategory | Connector Discrete Wire Housing |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage - Rated | 350V AC | Current Rating (Max) | 3/Contact A |
| Voltage - Input (Min) | 350VDC|350VAC | Voltage - Supply (Min) | 350V |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 0.100" (2.54mm) | Height | 7.72 mm |
| Weight | 0.51 g | Packaging | Bag |
| Row Spacing | 0.100" (2.54mm) | Contact Type | Female Socket |
| Pitch - Post | 2.54mm | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Mounting Style | for cable |
| Number of Rows | 2 | Housing Material | Polyphenylene Oxide |
| Length - Overall | 7.62 mm | Package Quantity | 4000 |
| Connector - Cable | plug | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| 1st Connector Mounting Feature | 2x3 | ||
Product Info
| Spg | 4000 | Note | Contacts Not Provided |
| Type | Housing | Gender | F |
| Adapter Series | C-Grid III | Number of Units | 1 |
| Industry Aliases | 90142-0006, 901420006 | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
0901310763
molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 6POS .100" STR GOLD
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901303206
molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A GOLD
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

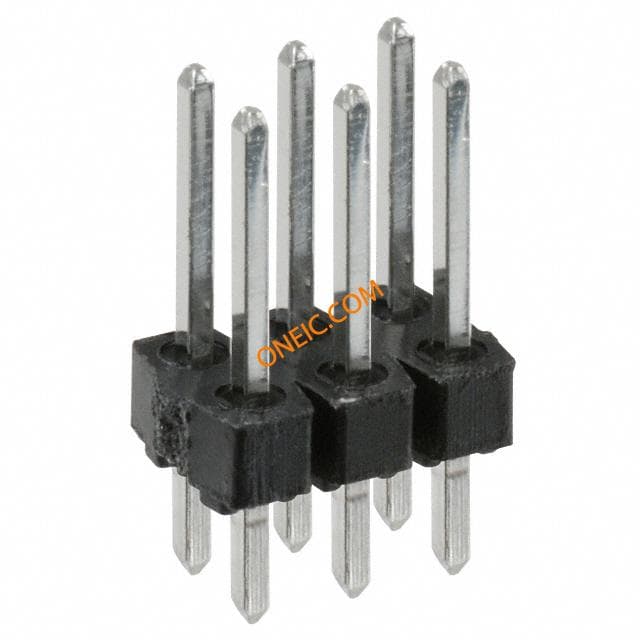

0901310123
molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Bag Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN

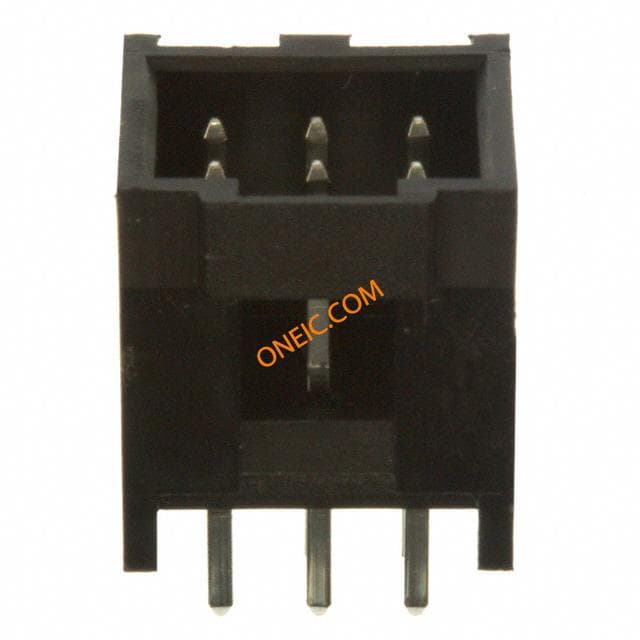

0901301106
molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

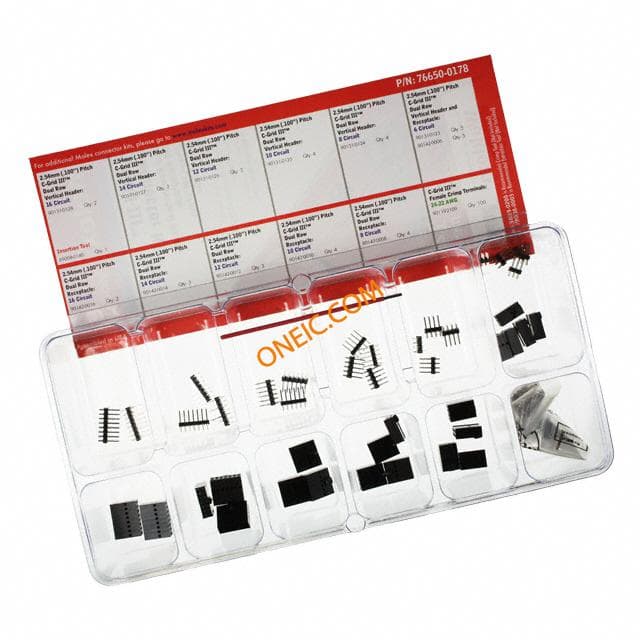

76650-0178
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, VERTICAL HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III DUAL WTB Headers & Wire Housings CGRID3 WTB 2ROW KIT Kit Description:Dual Row Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:143 C-GRID III CONNECTOR KIT DUAL ROW VERT HEADER & RECEPT

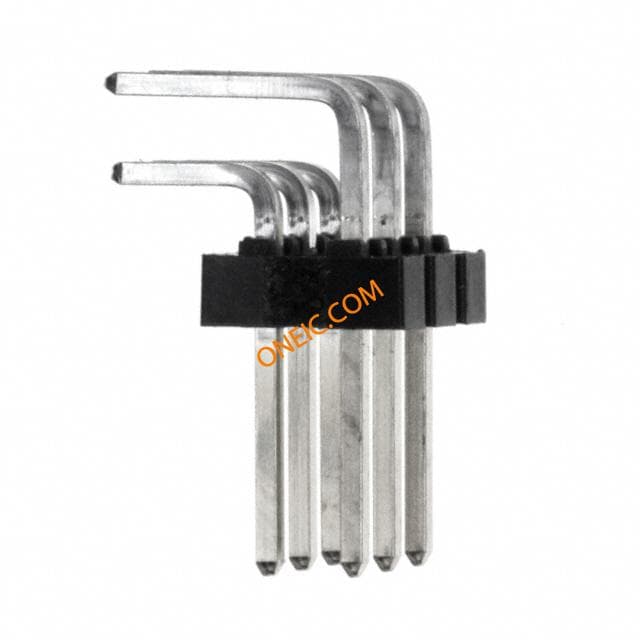

0901220763
Molex
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A GOLD Pin header; pin strips; C-Grid III; male; PIN:6; angled 90°; THT
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A

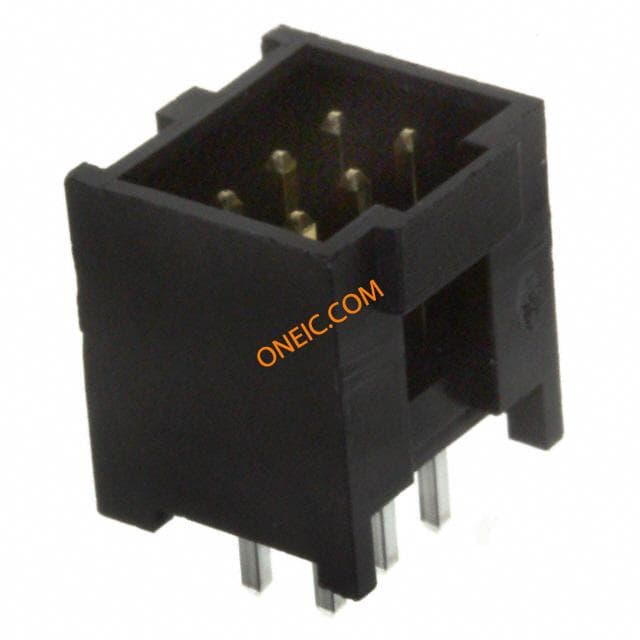

0901301206
Molex
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR GOLD Socket; pin strips; C-Grid III; male; PIN:6; straight; 2.54mm; THT
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

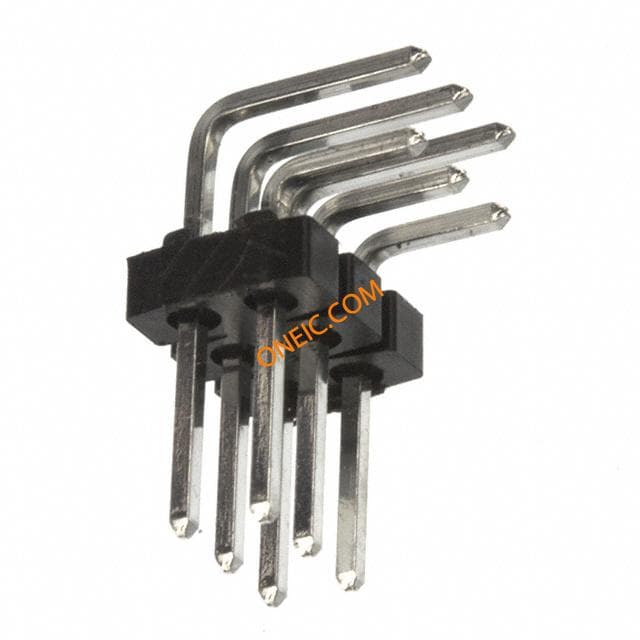

90122-0123
Molex Connector Corporation
CONN HEADER 6POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 6P R/A DR TIN Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray

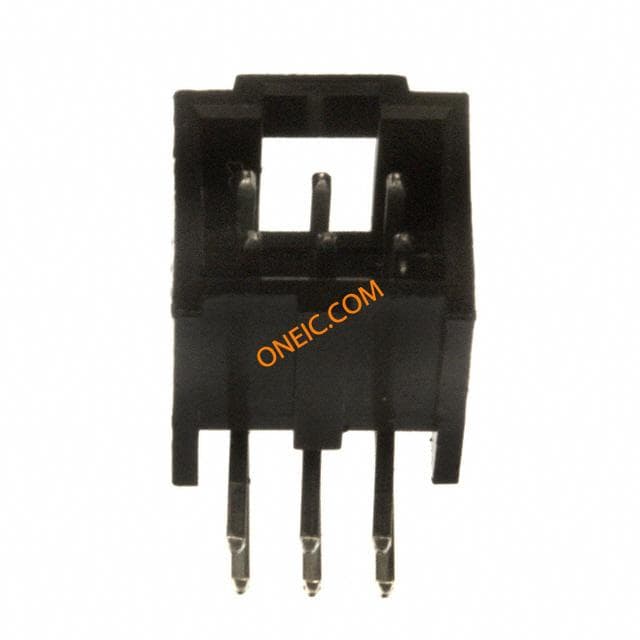

90130-3106
