0901220128
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Bag Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 16POS .100" R/A TIN |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 350V | ||
Mechanical
| Color | Black | Depth | 13.54 |
| Pitch | 2.54 mm | Height | 6.15 |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Tin Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 20.32 |
| Number of Contacts | 16 | Number of Positions | 16 |
| Contact Length - Mating | 0.266" (6.75mm) | Contact Finish Thickness | 160µin (4.06µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0901420016
molex
Conn Housing F 16 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 16POS .100" DUAL Plug; wire-board; C-Grid III; female; PIN:16; w/o terminals; 2x8
76650-0179
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE SIZE KIT CONN C-GRID III R/A DUAL WTB Headers & Wire Housings CGRID3 R/A 2ROW KIT COMPONENT KITS, WIRE TO BOARD KIT 10,12,14,16,6,8POS 3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.54MM PITCH 350V 24-22 WIRE ... Kit Description:Dual Row Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 12.75" by 6"Num. Pieces:139 C-GRID III CONNECTOR KIT DUAL ROW RT ANGLE HEADER & RECEPT

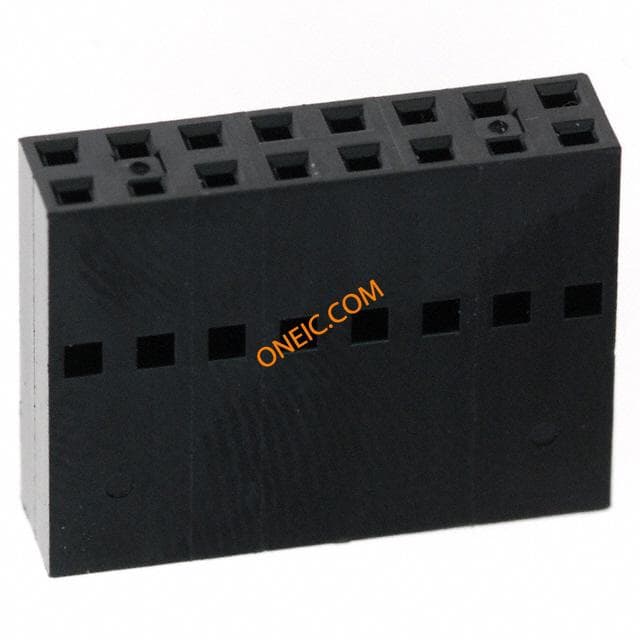

90143-0016
