0901210766
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 6POS .100" R/A GOLD Pin header; pin strips; C-Grid III; male; PIN:6; angled 90°; THT |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 3A |
| Voltage - Input (Min) | 350V | ||
Mechanical
| Color | Black | Depth | 11 |
| Pitch | 0.100" (2.54mm) | Height | 3.6 |
| Weight | 0.48 g | Packaging | Tray |
| Orientation | angled 90° | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Gold |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyester | Length - Overall | 15.24 |
| Package Quantity | 10 | Connector - Cable | pin header |
| Number of Contacts | 6 | Number of Positions | 6 |
| Plating - Thickness | 0.38µm | Contact Length - Mating | 0.266" (6.75mm) |
| Contact Finish Thickness | 15µin (0.38µm) | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | 1x6 | ||
Product Info
| Spg | 10 | Type | Unshrouded Header |
| Gender | HDR | Adapter Series | C-Grid III |
| Number of Units | 1 | Number of Positions Loaded | All |
Similar Parts
0901560146
molex
Conn Housing RCP 6 POS 2.54mm Crimp ST Bag CONN HOUSING 6POS .100" CRIMP

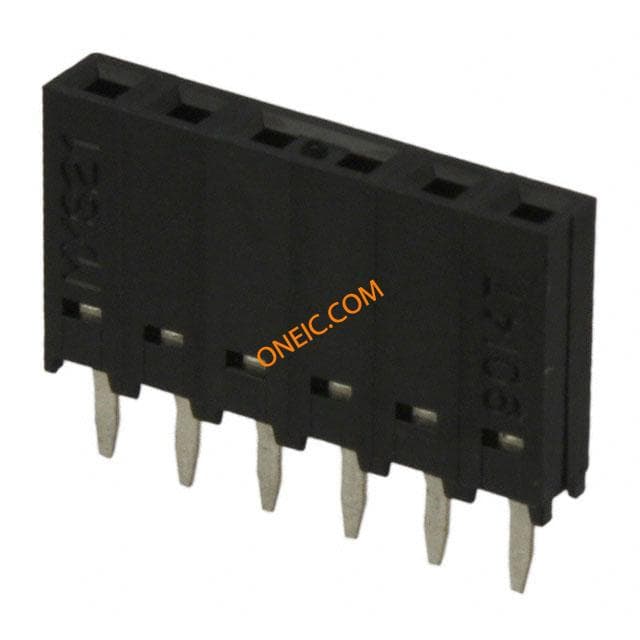

0901471106
molex
6PIN C-GRID CONNECTOR Conn Socket Strip F 6 POS 2.54mm Solder ST Thru-Hole Tube C-GRID PCB CONN SR VT TN-A 6CKT

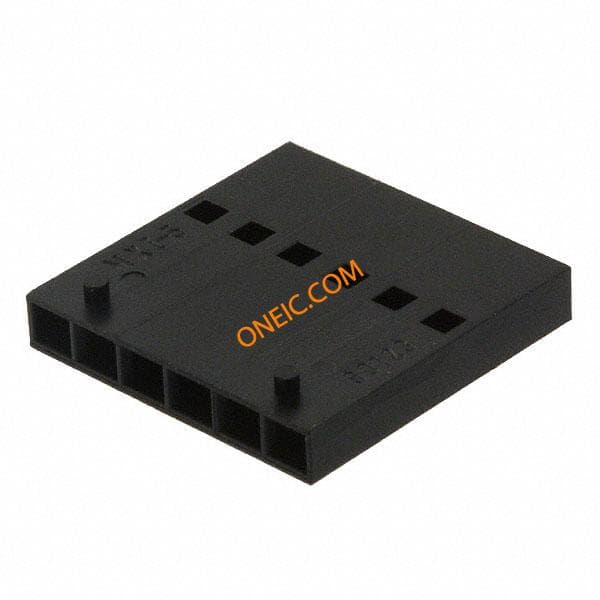

90123-0106
