点击放大查看
0901200126
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 6POS .100" STR TIN |
| Category |
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Contact Resistance | 20 | Current Rating (Max) | 3/Contact |
| Voltage - Input (Min) | 350V | ||
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 9.25 |
| Packaging | Tray | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyester |
| Length - Overall | 15.24 | Number of Contacts | 6 |
| Number of Positions | 6 | Contact Length - Mating | 0.266" (6.75mm) |
| Contact Finish Thickness | 160µin (4.06µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Similar Parts
0901560146
molex
Conn Housing RCP 6 POS 2.54mm Crimp ST Bag CONN HOUSING 6POS .100" CRIMP

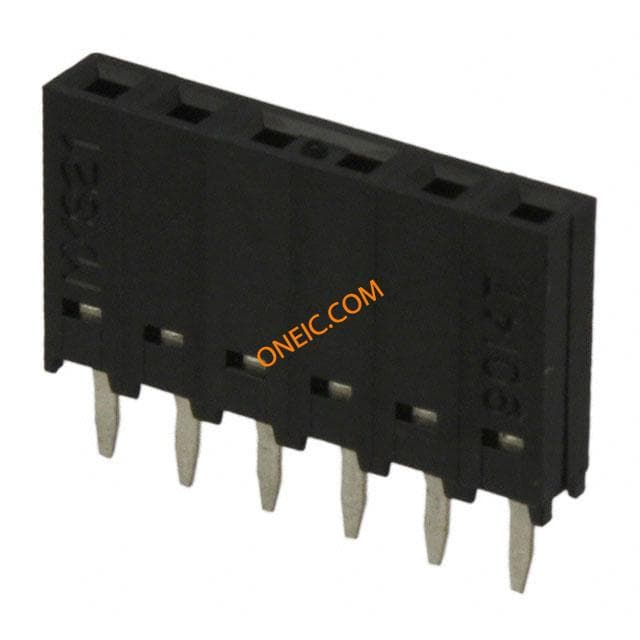

0901471106
